*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

0134 62 21

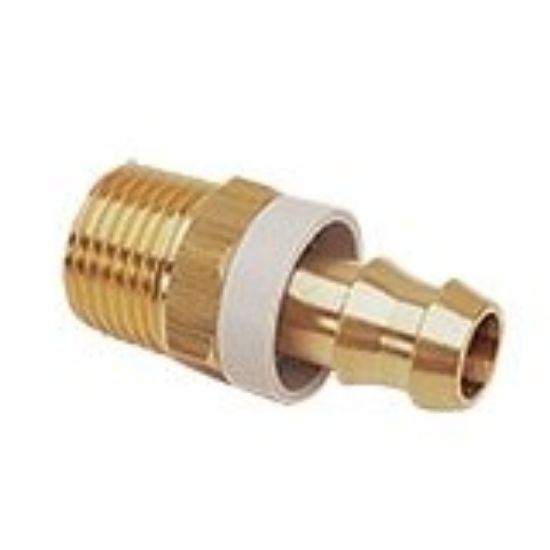

Parker 0134 62 21 | Quick-Acting Barbed Fitting | Material Brass | Shape Self-Fastening Barb Connector Male | Max. Operating Pressure 17 Bar

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 0134 62 21

$12.75/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

This range of fittings is designed to meet the requirements of the automotive and robotics industries, provides optimum CNOMO manufacturing quality, simple installation, reliable operation and a long service life.

Features:

Quick and simple to install
Compatible with the Parker Legris range of brass compression fittings
Mechanical properties proven for use in industrial robotic installations
Spark-resistant
Fitting does not require lubrication or clamping, reducing assembly time
Visual stop confirms installation is correct and improves operating safety
Removal by cutting the tube
The fitting can be re-used if necessary
Applications:
- Pneumatic Machinery Equipment at Medium and High Pressure
- Lubrication Systems
- Cooling Systems
- Welding Robots
- Suitable for Vacuum Applications
Markets:
Packaging | Miscellaneous Manufacturing | Vehicle Assembly Facilities | Machine Tools

Products specifications

Attribute name	Attribute value
UOM	EA	Min. Operating Temperature	-20 °C
Media	Coolants, Compressed Air	Shape	Self-Fastening Barb Connector Male
Max. Operating Temperature	101 °C	Weight	0.062 kg
Max. Operating Pressure	17 Bar	Parker Division	Hose Products
Parker Group	Fluid Connector
