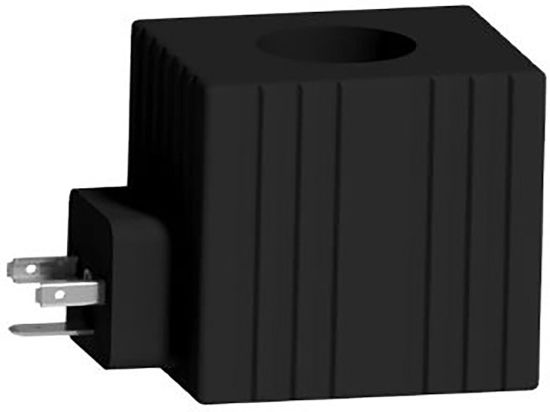

851058-012VDC - 1" DS Coil

Name: 851058-012VDC - 1" DS Coil
SKU: 851058-012VDC
Price: 130.50 USD
Availability: LimitedAvailability

Parker’s 1 inch DS Coil is a high power coil often used with 12, 16, and 20 size proportional or on-off solenoid cartridges. Multiple voltage and termination styles are standard cataloged options.

Availability:

6 in stock

Wichita, KS	2
Kansas City, KS	2
Olivette, MO	2

Partner Available:

30 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 851058-012VDC

$130.50/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	12 VDC
Connection Type	Din	Coil Type	Standard
Power Consumption	42 W	Body Material	n/a
Maximum Operating Temperature	200 °C	Minimum Operating Temperature	-40 °C
For Fluid Type	n/a	Resistance	3.4 Ω
Actuation Type	n/a	Flow Rate	n/a
Maximum Operating Pressure	n/a	Duty Cycle	Continuous @ 100% Voltage
Current	3.53 A	Function	1" DS Coil
Maximum Flow Rate	n/a	Weight	1.27 lb
Seal Material	n/a
