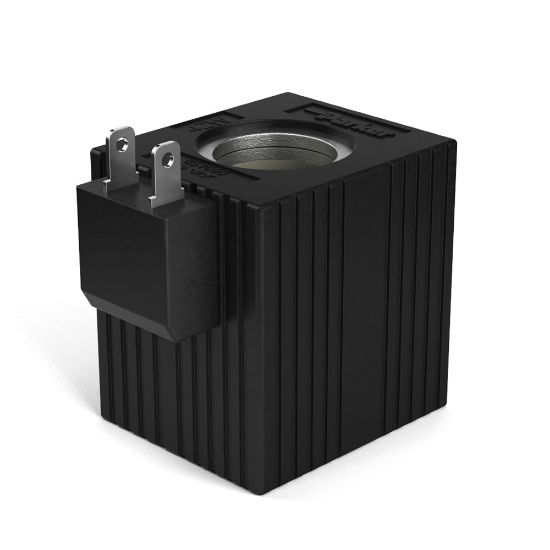

851060-012VDC - 1" DS Coil

Parker’s 1 inch DS Coil is a high power coil often used with 12, 16, and 20 size proportional or on-off solenoid cartridges. Multiple voltage and termination styles are standard cataloged options.

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	7 in stock

SKU 851060-012VDC

$160.49/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	12 VDC
Connection Type	Dual Spade	Body Material	n/a
Minimum Operating Temperature	-40 °F	Actuation Type	n/a
Resistance	3.4 Ω	Flow Rate	n/a
Maximum Operating Pressure	n/a	Duty Cycle	Continuous @ 100% Voltage
Current	3.53 A	Maximum Flow Rate	n/a
Seal Material	n/a	Weight	1.27 lb
Function	1" DS Coil	Coil Type	Standard
For Fluid Type	n/a	Maximum Operating Temperature	200 °C
Power Consumption	42 W
