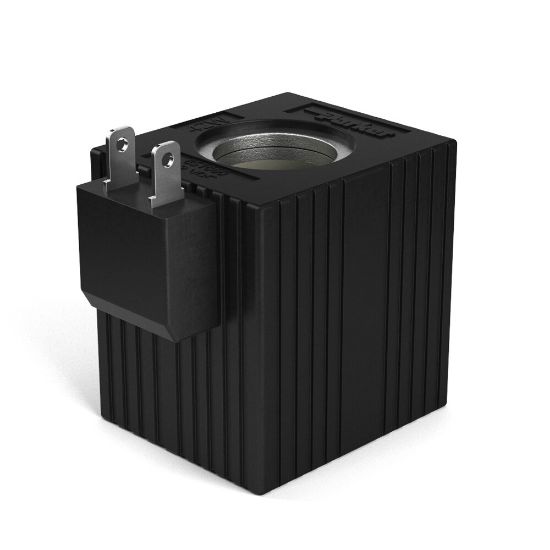

851060-024VDC - 1" DS Coil

Parker’s 1 inch DS Coil is a high power coil often used with 12, 16, and 20 size proportional or on-off solenoid cartridges. Multiple voltage and termination styles are standard cataloged options.

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU 851060-024VDC

$114.41/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	24 VDC
Connection Type	Dual Spade	Seal Material	n/a
Function	1" DS Coil	Maximum Flow Rate	n/a
Maximum Operating Pressure	n/a	Flow Rate	n/a
Current	1.79 A	Power Consumption	42 W
Minimum Operating Temperature	-40 °C	Actuation Type	n/a
Weight	0.58 kg	For Fluid Type	n/a
Coil Type	Standard	Duty Cycle	Continuous @ 100% Voltage
Maximum Operating Temperature	392 °F	Resistance	13.4 Ω
Body Material	n/a
