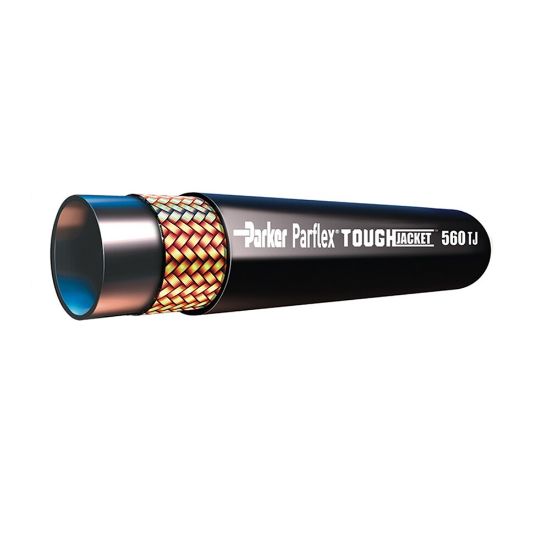

Picture of 560TJ-12 - 100R1 Hose - 560TJ

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

560TJ-12 - 100R1 Hose - 560TJ

Thermoplastic 560TJ TOUGHJACKET™ Series Hydraulic Hose utilizes a specially formulated jacket material for maximum abrasion resistance which exceeds comparable hoses by 100%.
Availability:
Backordered
Estimated Lead Time: 14 days
Partner Available:358 in stock
SKU 560TJ-12
$10.75/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)3/4
Hose StyleSingleMinimum Operating Temperature-40 °C
Design Factorn/aMaximum Operating Temperature250 °F
Cover MaterialPolyurethaneCompatible Fitting56 Series
Size-12Inside Diameter3/4 inch
Minimum Bend Radius4-1/4 inchMediaPetroleum Hydraulic Fluids
Weight0.28 lb/ftHose Cover TypeToughJACKET™
Specifications MetMSHAHose Inner Tube MaterialCopolyester
Hose Reinforcement MaterialBraid of High Tensile Steel WireProduct StyleStandard
Maximum Operating Pressure121 barOutside Diameter1.040 inch
