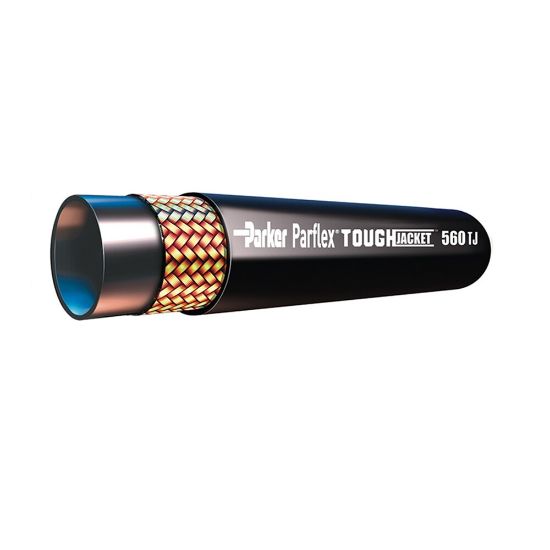

Picture of 100R1 Hose - 560TJ - 560TJ-3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

100R1 Hose - 560TJ - 560TJ-3

Thermoplastic 560TJ TOUGHJACKET™ Series Hydraulic Hose utilizes a specially formulated jacket material for maximum abrasion resistance which exceeds comparable hoses by 100%.
Availability:
Backordered
SKU 560TJ-3
$4.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)3/16
Hose StyleSingleDivisionParflex Division
Minimum Operating Temperature-40 °CWeight0.11 kg/m
Minimum Bend Radius19 mmMediaWater
Design Factorn/aMaximum Operating Temperature250 °F
Cover MaterialPolyurethaneCompatible Fitting56 Series
Size-3Hose Cover TypeToughJACKET™
Inside Diameter3/16 inchApplicationManufacturing
Hose Inner Tube MaterialCopolyesterHose Reinforcement MaterialBraid of High Tensile Steel Wire
Product StyleStandardMaximum Operating Pressure3626 psi
Outside Diameter0.390 inchSpecifications MetSAE J517 and 100R1, Type AT
