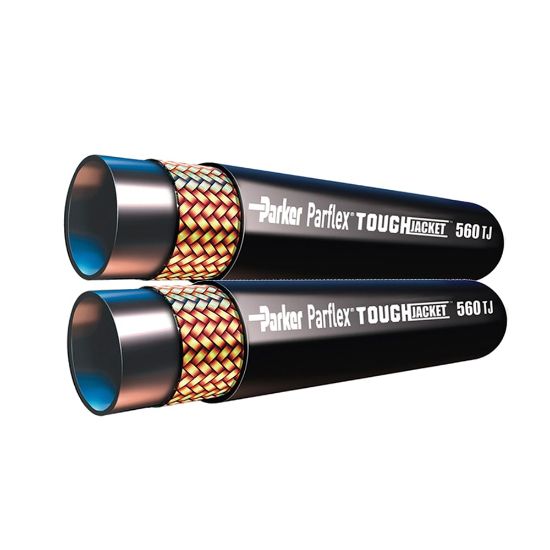

Picture of 560TJ-8-8 - 100R1 Hose - 560TJ

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

560TJ-8-8 - 100R1 Hose - 560TJ

Thermoplastic 560TJ TOUGHJACKET™ Series Hydraulic Hose utilizes a specially formulated jacket material for maximum abrasion resistance which exceeds comparable hoses by 100%.
Availability:
Backordered
Estimated Lead Time: 36 days
Partner Available:55 in stock
SKU 560TJ-8-8
$16.29/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)1/2
Hose StyleTwin-lineMinimum Operating Temperature-40 °F
Minimum Bend Radius3 inchSize-8
Design Factorn/aInside Diameter1/2 inch
Cover MaterialPolyurethaneCompatible Fitting56 Series
Maximum Operating Temperature121 °CMediaPetroleum Hydraulic Fluids
Hose Cover TypeToughJACKET™Maximum Operating Pressure172 bar
Specifications MetMSHAHose Inner Tube MaterialCopolyester
Hose Reinforcement MaterialBraid of High Tensile Steel WireProduct StyleTwin-Line
Weight0.19 lb/ftOutside Diameter1.500 inch
