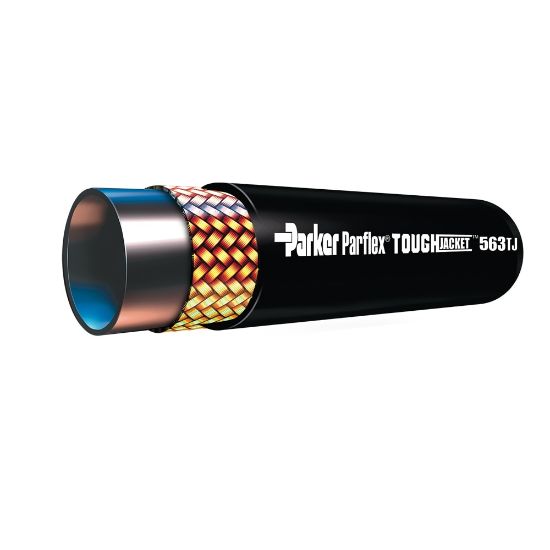

563TJ-4 - 100R17 Hose - 563TJ

PARFLEX 563TJ TOUGHJACKET™ 3,000 PSI HOSE features the best low length change hose under pressure (+/- 1%) with maximum abrasion resistance. Formed hose and/or bonded hose.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	4444 in stock

SKU 563TJ-4

$4.55/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Minimum Operating Temperature	-40 °C	Size	-4
Inside Diameter	1/4 inch	Design Factor	4:1
Media	Water	Maximum Operating Temperature	250 °F
Cover Material	Polyurethane	Compatible Fitting	56 Series
Minimum Bend Radius	38.1 mm	Weight	0.14 kg/m
Hose Cover Type	ToughJACKET™	Outside Diameter	11.9 mm
Hose Inner Tube Material	Copolyester	Specifications Met	SAE J517 and 100R1, Type AT
Maximum Operating Pressure	3045 psi	Hose Reinforcement Material	1 Braid of High Tensile Steel Wire
