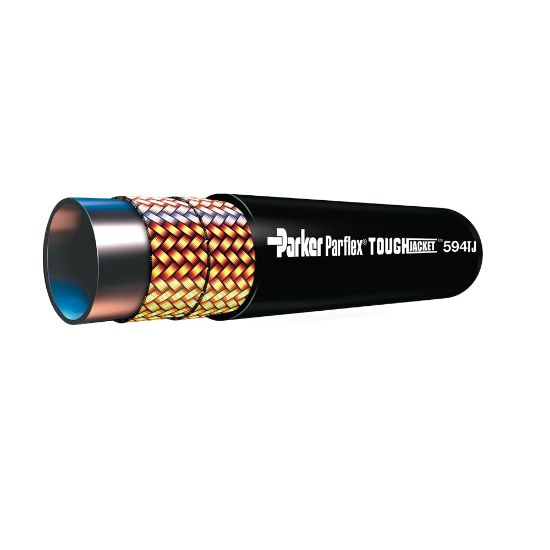

Picture of 100R19 Hose - 594TJ - 594TJ-6

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

100R19 Hose - 594TJ - 594TJ-6

The 594TJ TOUGHJACKET™ 4,000 PSI HOSE is a 4,000 psi hose featuring maximum abrasion resistance. Meets SAE 100R19. Available in long, continuous lengths and as bonded hose and/or formed hose assembly.
Availability:
Backordered
SKU 594TJ-6
$5.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)3/8
DivisionParflex DivisionHose Cover TypeToughJACKET™
ApplicationLubricating OilsMediaLubricants (Oils)
Specifications MetSAE 100R19Hose Inner Tube MaterialCopolyester
Cover MaterialPolyurethaneMaximum Operating Pressure4061 psi
Minimum Bend Radius2-1/2 inchHose Reinforcement MaterialBraid of High Tensile Steel Wire
Inside Diameter10 mmMaximum Operating Temperature100 °C
Size-6Weight0.28 kg/m
Compatible Fitting56 SeriesMinimum Operating Temperature-40 °C
Design Factor4:1Outside Diameter26.4 mm
