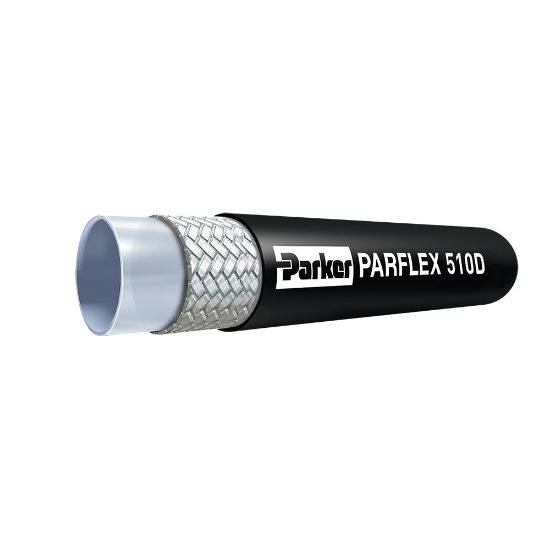

Picture of 100R7 Hydraulic Hose - 510D - 510D-12

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

100R7 Hydraulic Hose - 510D - 510D-12

Parker's 510D hydraulic hose reduces noise in hydraulic systems. Quick connect fittings to speed up installation and it has a low for to flex for tighter routing.
Availability:
162 in stock
Springfield, MO94
Kansas City, KS42
Wichita, KS24
Peoria, IL2
SKU 510D-12
$11.38
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)3/4
DivisionParflex DivisionMinimum Operating Temperature-40 °C
Design Factor4:1Minimum Bend Radius127 mm
Maximum Operating Temperature212 °FApplicationAgriculture Equipment
Cover MaterialPolyurethaneCompatible Fitting56 Series
Hose Inner Tube MaterialPolyamide (PA)Hose Reinforcement MaterialFiber
Size-12Inside Diameter19 mm
Outside Diameter26.7 mmMediaPetroleum Hydraulic Fluids
Weight0.25 lb/ftMaximum Operating Pressure8.8 MPa
Specifications MetISO 3949, Type R7-1
