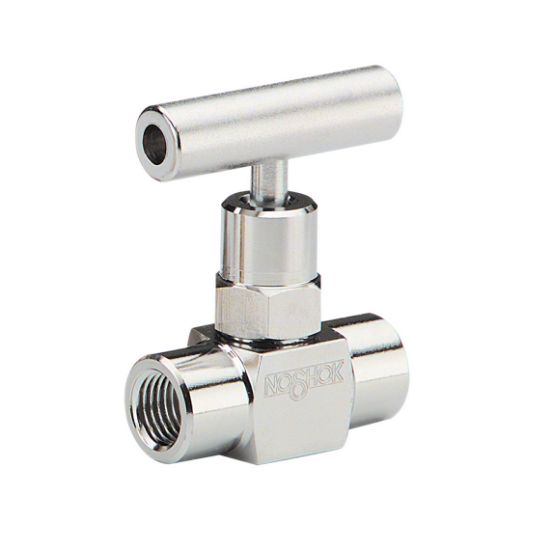

Picture of 102-FFS - 100 Series Mini Needle Valves with Hard Seat

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

102-FFS - 100 Series Mini Needle Valves with Hard Seat

Manufacturer: NOSHOK, Inc.
Availability:
Backordered
Estimated Lead Time: 21 days
Partner Available:7 in stock
SKU 102-FFS
$121.92/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEANotePlease consult the factory for special application requests.

All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.
Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional Information
  • All stem threads are rolled for strength and ease of operation
  • Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve (U.S. Patent 7,758,014)
Limitations Which Apply AreThese units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.		Warranty_yr3
Process Connection Size1/4Installed Options and Accessories
  • Packing (If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the Pressure vs. Temperature: Packing Style with Compatible Fluid chart Options Reference Chart)
    • PTFE (P1)
    • Graphite (P2)
  • Stem Tips
    • Non-rotating (316 Stainless Steel) (T1)
    • Ball, 440C Stainless Steel (T5)
    • Ball, carbide (T6)
    • Ball, ceramic (T7)
    • Ball, Monel (T8)
    • Non-rotating regulating, 316 Stainless Steel (T9)
  • O-Rings (Other o-ring materials available on request)
    • EPDM (EM1)
    • FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1)
    • NBR (NB1)
  • Panel Mount
    • 1 nut (PM1)
    • 2 nuts (PM2)
  • Handles
    • 2-1/2" T-Handle (HL2)
    • 1" Round Knurled Handle (HL3)
    • 1-3/8" Phenolic Handle (HL4)
    • 1-3/4" Phenolic Handle (HL5)
  • Cleaning For Oxygen Service (Stainless Steel & Brass Only)
Assembly OptionsNOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.Stem Seal and TypeAll 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional
TypeNeedle ValveO-Rings MaterialFKM
MaterialElectropolished 316 Stainless SteelUnit Net Weight_lb0.5
SeatHard SeatHandlesMini "T"
Stem TipsStainless SteelWeight_lb0.5
Connection1/4" NPTValve TypeFemale-Female
Body MaterialElectropolished 316 Stainless SteelValve MaterialStainless Steel
Connection TypeNational Pipe Thread (NPT)Handle MaterialStainless Steel
Orifice Size_in0.172Flow Coefficient Cv0.42
Pressure Rating at 200ºF10,000
