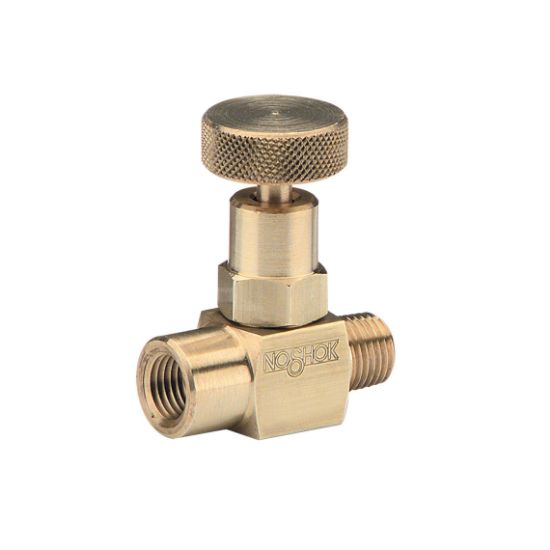

102-MFB - 100 Series Mini Needle Valves with Hard Seat

Manufacturer: NOSHOK, Inc.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	1 Limited Stock

SKU 102-MFB

$56.03/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Note	Please consult the factory for special application requests. All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.
Prop 65 Warnings	WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov	Additional Information	All stem threads are rolled for strength and ease of operation Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve (U.S. Patent 7,758,014)
Limitations Which Apply Are	These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.	Warranty_yr	3
Process Connection Size	1/4	Installed Options and Accessories	Packing (If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the Pressure vs. Temperature: Packing Style with Compatible Fluid chart Options Reference Chart) PTFE (P1) Graphite (P2) Stem Tips Non-rotating (316 Stainless Steel) (T1) Ball, 440C Stainless Steel (T5) Ball, carbide (T6) Ball, ceramic (T7) Ball, Monel (T8) Non-rotating regulating, 316 Stainless Steel (T9) O-Rings (Other o-ring materials available on request) EPDM (EM1) FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1) NBR (NB1) Panel Mount 1 nut (PM1) 2 nuts (PM2) Handles 2-1/2" T-Handle (HL2) 1" Round Knurled Handle (HL3) 1-3/8" Phenolic Handle (HL4) 1-3/4" Phenolic Handle (HL5) Cleaning For Oxygen Service (Stainless Steel & Brass Only)
Assembly Options	NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.	Stem Seal and Type	All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional
Connection Type	National Pipe Thread (NPT)	Stem Tips	Stainless Steel
O-Rings Material	FKM	Material	360 Brass
Flow Coefficient Cv	0.42	Connection	1/4" NPT
Handles	Round Knurled	Handle Material	Brass
Orifice Size_in	0.172	Unit Net Weight_lb	0.5
Type	Needle Valve	Body Material	360 Brass
Seat	Hard Seat	Valve Material	Brass
Pressure Rating at 200ºF	6,000	Weight_lb	0.5
Valve Type	Male-Female
