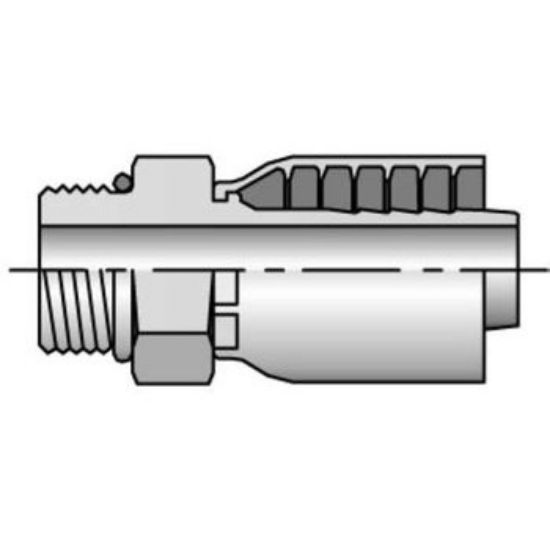

10543-8-4

The 43 Series of hydraulic hose fittings from Parker Hannifin is renowned for its ease of assembly, wide selection of shape and end formations, hose compatibility, and extensive use across markets. This cost-effective line of permanent crimp-style hydraulic fittings is designed for use with Parkcrimp crimpers to deliver “bite-the-wire” sealing and holding power. When used with Parker’s No-Skive hoses, 43 Series fittings can be assembled without removing the outer hose cover, eliminating premature hose failure caused by skiving too long or too short. 43 Series fittings feature one-piece construction with chromium-6-free plating, and are compatible with petroleum-based hydraulic fluids and lubricating oils and with phosphate-ester-based hydraulic fluids. Applications include hydraulic industry standard, constant working pressure, high temperature, low temperature, suction and return. Available in sizes from ¼-inch to 2 inches in a wide variety of end formations, the 43 Series is offered in more than 2,500 configurations and is available around the world. For highly corrosive applications, 43 Series fittings also are available in stainless steel.

Features/Benefits:

Easy push on force

Imperial HEX

Stainless steel option available

Wide range of end configurations

One piece reduces complexity and leakage path

No-Skive technology offers easy, efficient, and safe production processes

Applications:

Petroleum base hydraulic fluids and lubricating oils

Phosphate-ester base hydraulic fluids

Compatible Hoses:

301LT

302

304

351TC, 351ST

387/TC/ST (-4 through -20 only)

422

424

426

431

436

451TC, 451ST

471TC, 471ST

472TC

482TC, 482ST

487/TC/ST (-4 through -16 only)

722/TC/ST

787/TC/ST (-4 and -6 only)

797/TC/ST (-4 and -6 only)

881

GST II Series 7092

Markets:

Transportation | RV & Bus | Military | Construction | Agriculture | Grounds & Building Maintenance | Forestry | Railroad | Utility Equipment | Personnel Lift Equipment | Machine Tool | Oil Field Service | Waste & Refuse | Material Handling | Marine | Paving & Road Maintenance | Ground Support Equipment | Industrial | Mining
