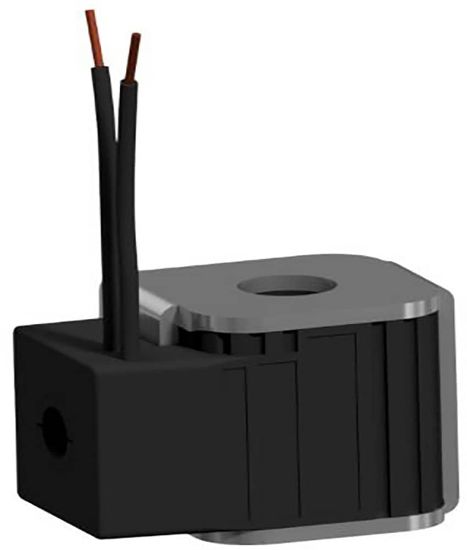

CCP024L - 1/2" Super Coil

Parker's broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	35 in stock

SKU CCP024L

$42.82/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	24 VDC
Connection Type	Dual Lead Wire	Diode	No
Power Consumption	19 - High Watt	Minimum Operating Temperature	-40 °F
For Fluid Type	n/a	Flow Rate	n/a
Body Material	n/a	Seal Material	n/a
Maximum Operating Pressure	n/a	Maximum Flow Rate	n/a
Maximum Operating Temperature	392 °F	Duty Cycle	Continuous @ 100% Voltage
Actuation Type	n/a	Coil Type	Puissant
Weight	0.44 kg	Current	0.79 A
Function	1/2" Super Coil	Resistance	30.3 Ω
