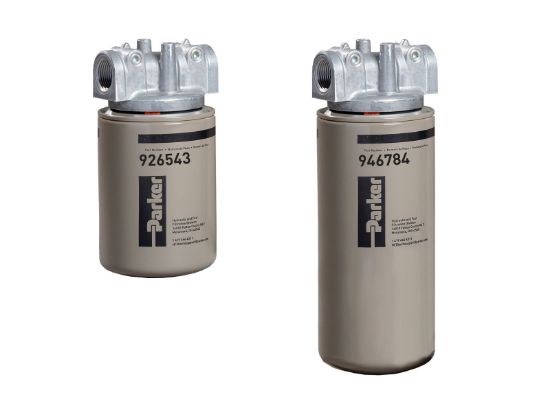

12AT10CN15MMH - 12AT Series Low Pressure Filter

Name: 12AT10CN15MMH - 12AT Series Low Pressure Filter
SKU: 12AT10CN15MMH
Price: 25.50 USD
Availability: InStock

12AT Series Hydraulic and Lube Oil Low Pressure Filter

Availability:

12 in stock

Wichita, KS

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 12AT10CN15MMH

$25.50/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Port	12 SAE
Operating Temperature	-40F to 225F (-40C to 107C)	Element Length	Single
Nominal Filter Rating	10 micron	Nominal Flow Rating	12 GPM (45 LPM)
Seals	Nitrile	Indicator Type	No Indicator
Bypass	15 PSI (1.0 bar)	Gauge Port Location	Inlet And Outlet - Both Sides
Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)	Replacement Element	921999
Parker Group	Filtration	Parker Division	Hydraulic Filter
Series	12AT	Operating Temperature	-40F to 225F (-40C to 107C)
Port	12 SAE	Filter Type	Low Pressure Filter
Nominal Filter Micron Rating	10 micron	Element Length	Single
Port Type	SAE	Indicator Type	No Indicator
Bypass	15 PSI (1.0 bar)	Gauge Port Location	Inlet And Outlet - Both Sides
Seals	Nitrile	Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)
Nominal Flow Rating	12 GPM (45 LPM)	Filter Media Code	10C
Filter Media Type	Cellulose

Product resources

12AT/50AT/80AT/80UT Series (PDF)
