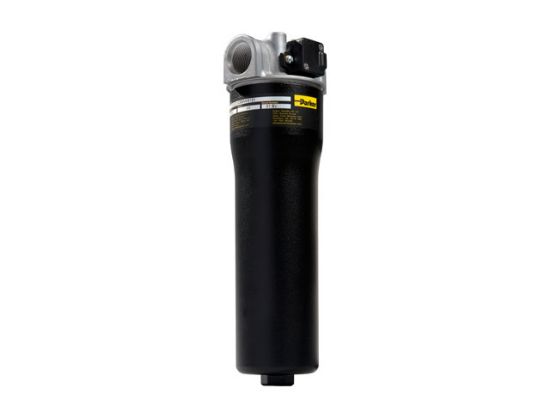

12CS Series Medium Pressure Filter - 12CS205QEBNGS121

Name: 12CS Series Medium Pressure Filter - 12CS205QEBNGS121
SKU: 12CS205QEBNGS121

12CS Series Hydraulic and Lube Oil Medium Pressure Filter

Availability:

Backordered

SKU 12CS205QEBNGS121

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Port	12 SAE
Operating Temperature	-40F to 225F (-40C to 107C)	Element Length	Double
Nominal Filter Rating	5 micron	Nominal Flow Rating	15 GPM (57 LPM)
Seals	Nitrile	Indicator Type	No Indicator
Bypass	25 PSI (1.7 bar)	Max Pressure - Non-Fatigue MAOP	500 PSI (34.5 bar)
Replacement Element	940764Q	Options	No Option
Max Pressure - Fatigue MAOP	400 PSI (27.6 Bar)	Pkg Qty	1
UOM	EA	Parker Group	Filtration
Parker Division	Hydraulic Filter	Series	12CS
Operating Temperature	-40F to 225F (-40C to 107C)	Port	12 SAE
Filter Media Code	05QE	Filter Type	Medium Pressure Filter
Nominal Filter Micron Rating	5 micron	Filter Media Type	Ecoglass III
Element Length	Double	Port Type	SAE
Indicator Type	No Indicator	Bypass	25 PSI (1.7 bar)
Seals	Nitrile	Max Pressure - Non-Fatigue MAOP	500 PSI (34.5 bar)
Nominal Flow Rating	15 GPM (57 LPM)	Options	No Option
Max Pressure - Fatigue MAOP	400 PSI (27.6 bar)

Product resources

12CS/50CS Series (PDF)
