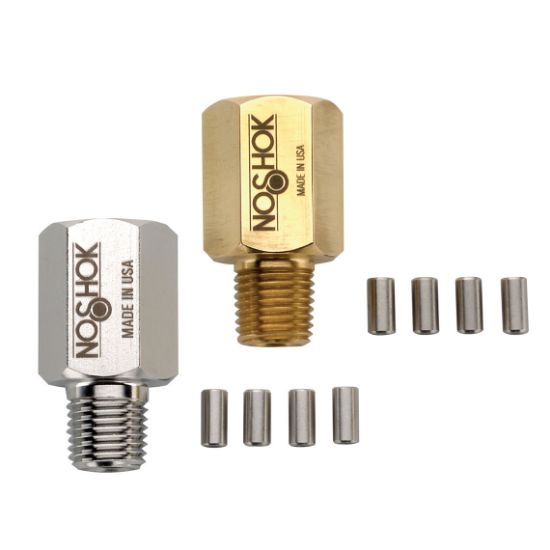

1325 - Piston-Type Snubbers

Manufacturer: NOSHOK, Inc.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	23 in stock

SKU 1325

$53.55/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Prop 65 Warnings	WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Process Connection Size	1/4	Dimension A_in	0.812
Dimension A_mm	20.6	Dimension B_in	1.6
Dimension B_mm	40.6	Dimension C_in	1.04
Dimension C_mm	26.4	Dimension D_in	0.56
Dimension D_mm	14.2	Piston	A, B, C, D, E
Type	Snubber	Pressure Rating_psi	6,000
Connection Type	National Pipe Thread (NPT)	End Size	1/4
End Type	National Pipe Thread (NPT)	Weight_lb	0.2
Process Connection	1/4" NPT	Connection Size_in	1/4
Process Connection Type	National Pipe Thread (NPT)	Style	Piston-Type
Material	Brass
