134010

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 134010

$5,823.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

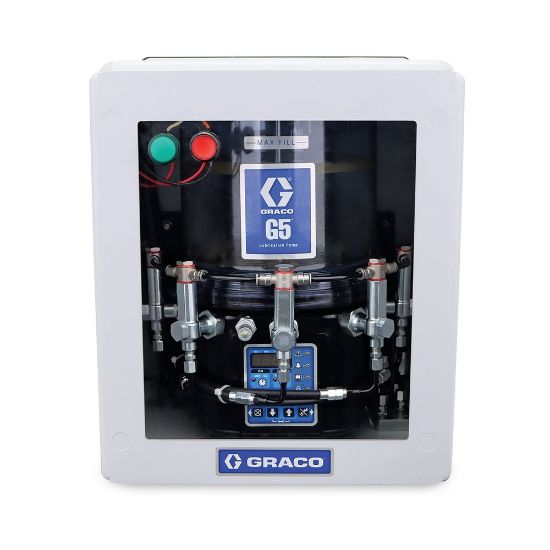

Greater profit is within reach with Graco G5 pumps. Equipped with five pump elements for more versatile and simple grease operations, the G5 has been designed specifically for the harsh demands of fracking operations.

Features

Five Pump Elements
Flexible Power Options
Optional Pressure Relief Valves
Two Controller Options
Reservoir Wiper Arm
Robust Reservoir

Applications

Off-Road Equipment

Products specifications

Attribute name	Attribute value
UOM	EA	Alarm Relay Resistive Maximum Switching Capacity	50 VA;60 W
Series	Pro	Weight	46.9 lb
Maximum Working Pressure	4250 psi	Number of Pressure and Cycle Sensor Inputs	3
Alarm Relay Resistive Maximum Operating Current	3 A	Enclosure Dimensions	17.75 Inch; 14.94 Inch; 13.00 Inch
Number of Machine Count Sensor Inputs	1	Alarm Relay Inductive Maximum Switching Capacity	25 VA;30 W
Alarm Relay Inductive Maximum Operating Current	1.5 A	Pump Output with 1 Spacer	0.1 Cubic Inch/min
Overall Depth	15.2 Inch	Fluid Outlet Thread Type	NPT
Pump Output with 2 Spacers	0.06 Cubic Inch/min	Alarm Relay Resistive Rated Load	2 A
Fluid Outlet Size	0.125 Inch	Maximum Operating Temperature	185 deg F
Maximum Voltage	30 VDC	Pump Output with 0 Spacers	0.16 Cubic Inch/min
Maximum Fluid Output Pressure	4250 psi	Alarm Relay Inductive Rated Load	1 A
Maximum Run Time	30 min	Minimum cST Grade	40 cST
Model	G5	Alarm Relay Inductive Minimum Permissible Load	10 A;10m VDC
Minimum Operating Temperature	-40 deg F	Minimum Voltage	18 VDC
Number of Pump Elements	5	Reservoir Size	1.06 gal
Overall Width	14.94 Inch	Fluid Inlet Thread Gender	Female
IP Rating	IP69K	Maximum NLGI Grade	#2
Voltage	24 VDC	Fluid Inlet Thread Type	NPT
Alarm Relay Inductive Maximum Operating Voltage	220 VDC	Number of Outlets	5
Maximum Fill Inlet Pressure	5000 psi	Overall Height	17.75 Inch
Fluid Outlet Thread Gender	Female	Control Options	Pro
