134180

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 134180

$5,291.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

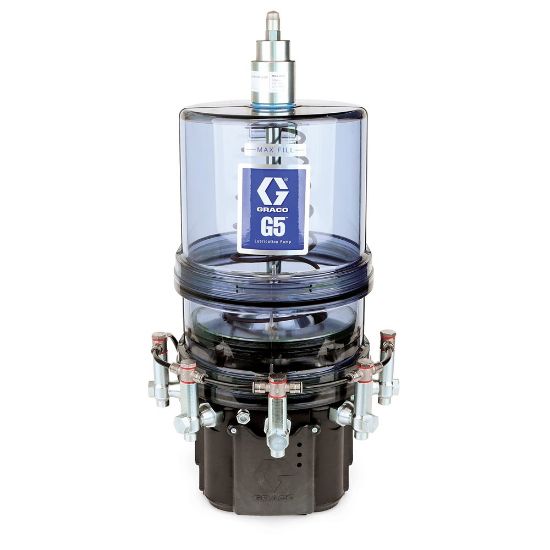

Greater profit is within reach with Graco G5 pumps. Equipped with five pump elements for more versatile and simple grease operations, the G5 has been designed specifically for the harsh demands of fracking operations.

Features

Five Pump Elements
Flexible Power Options
Optional Pressure Relief Valves
Two Controller Options
Reservoir Wiper Arm
Auto-Fill Shutoff (AFSO) Option
Robust Reservoir

Applications

Off-Road Equipment

Products specifications

Attribute name	Attribute value
UOM	EA	Number of Pressure and Cycle Sensor Inputs	3
Alarm Relay Resistive Maximum Switching Capacity	50 VA;60 W	Maximum Working Pressure	4250 psi
Alarm Relay Resistive Maximum Operating Current	3 A	Weight	21.6 lb
Alarm Relay Inductive Maximum Switching Capacity	25 VA;30 W	Number of Machine Count Sensor Inputs	1
Series	Pro	Alarm Relay Inductive Maximum Operating Current	1.5 A
Maximum Run Time	30 min	Alarm Relay Inductive Rated Load	1 A
Minimum cST Grade	40 cST	Reservoir Size	2.11 gal
Overall Width	9.25 Inch	Model	G5
Pump Output with 1 Spacer	0.1 Cubic Inch/min	Power Connection Type	DIN
Fluid Inlet Thread Gender	Female	IP Rating	IP69K
Maximum NLGI Grade	#2	Number of Pump Elements	5
Maximum Fluid Output Pressure	4250 psi	Pump Output with 0 Spacers	0.16 Cubic Inch/min
Fluid Outlet Thread Gender	Female	Overall Depth	11.18 Inch
Maximum Fill Inlet Pressure	5000 psi	Fluid Outlet Thread Type	NPSF
Alarm Relay Inductive Maximum Operating Voltage	220 VDC	Minimum Operating Temperature	-40 deg F
Control Options	Pro	Fluid Outlet Size	0.25 Inch
Minimum Voltage	18 VDC	Pump Output with 2 Spacers	0.06 Cubic Inch/min
Maximum Voltage	30 VDC	Alarm Relay Resistive Rated Load	2 A
Maximum Operating Temperature	185 deg F	Overall Height	22.67 Inch
Number of Outlets	5	Fluid Inlet Thread Type	NPT
Alarm Relay Inductive Minimum Permissible Load	10 VA;10m VDC	Voltage	24 VDC
