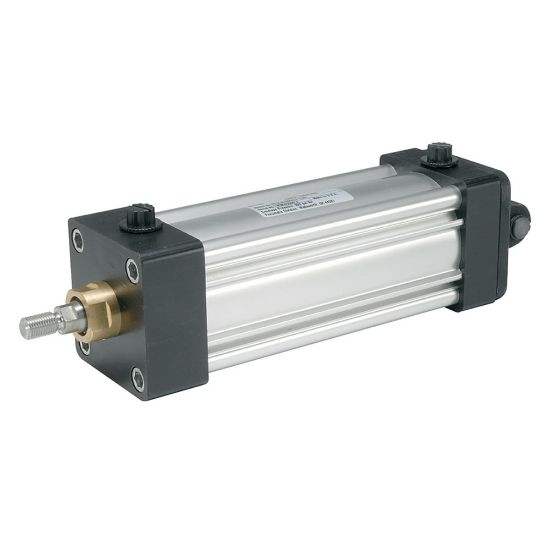

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

1.50CT4MA3U14AC08.00

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU 1.50CT4MA3U14AC08.00

$263.36/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Features:

The 4MA series cylinder is a ruggedly constructed, highly configurable, all purpose design. The aluminum body and machined aluminum end caps make the 4MA a light weight solution. To minimize downtime when maintenance is required, the externally removeable bronze gland enables servicing of the cylinder without disassembly of the body. The 4MA series cylinder has a full range of features and options.

Industry leading aluminum NFPA interchangeable cylinder with flexible construction
Removable bronze alloy gland/bearing for easymaintenance
Available in any practical stroke length
20 standard mounting styles available
Extruded-profile aluminum body with integratedswitch grooves
Single rod end or double rod ends
Cushions – standard and adjustable at bothends, optional non-cushioned
RoHS compliant

Products specifications

Attribute name	Attribute value
UOM	EA	Style	Tie Rod, NFPA
Series	4MA	Piston Material	Aluminum
Lube Specification	Non Lube Design	Corrosion Resistant	Yes
Filtration Required	40 micron	Port Size	3/8 Inch
Stroke Length	8 Inch	Bumpers	w/o Bumpers
Cushions	Cushioned, Both Ends	End Type	Single Rod
Port Type	NPTF	Seal Type	Lipseal
Filter Media	Filtered Air	Magnetic Ring	Yes
Seal Material	Nitrile	Rod Thread Type	UNF
Bore Size	1 1/2 Inch	Piston No.	1
Max. Pressure	250 psig	Rod Diameter	5/8 Inch
Rod Material	Case Hardened, Chrome-Plated Carbon Steel	Rod End Style	Male, Small
Rod End Thread	7/16-20	Max. Temperature Range	165 °F
Min. Temperature Range	-10 °F	Mounting Style	MX0
Mounting Style Code	T
