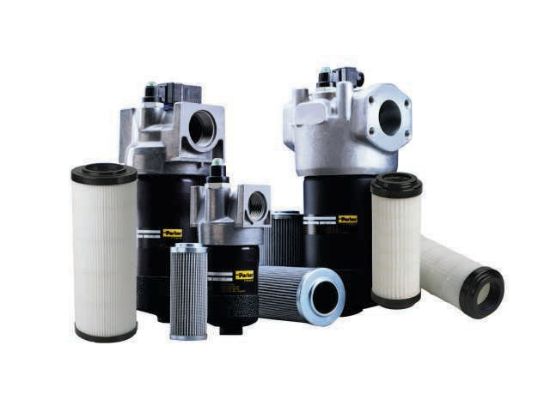

15CN Series Medium Pressure Filter - 15CN110QEVPGS124

Name: 15CN Series Medium Pressure Filter - 15CN110QEVPGS124
SKU: 15CN110QEVPGS124

15CN Series Hydraulic and Lube Oil Medium Pressure Filter

Availability:

Backordered

SKU 15CN110QEVPGS124

$308.71

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Port	12 SAE
Element Length	Single	Nominal Filter Rating	10 micron
Bypass	25 PSI (1.7 bar)	Operating Temperature	-15F to 250F (-26C to 121C)
Nominal Flow Rating	10 GPM (38 LPM)	Seals	Fluorocarbon
Indicator Type	Plugged Indicator	Max Pressure - Non-Fatigue MAOP	1000 psi (69 bar)
Options	SAE-4 drain port on bowl	Max Pressure - Fatigue MAOP	800 psi (55.2 bar)
Replacement Element	936700Q	Parker Group	Filtration
Parker Division	Hydraulic Filter	Port	12 SAE
Nominal Filter Micron Rating	10 micron	Element Length	Single
Port Type	SAE	Bypass	25 PSI (1.7 bar)
Filter Type	Medium Pressure Filter	Filter Media Type	Ecoglass III
Filter Media Code	10QE	Series	15CN
Operating Temperature	-15F to 250F (-26C to 121C)	Indicator Type	Plugged Indicator
Seals	Fluorocarbon	Max Pressure - Non-Fatigue MAOP	1000 PSI (69 bar)
Nominal Flow Rating	10 GPM (38 LPM)	Options	SAE-4 drain port on bowl
Max Pressure - Fatigue MAOP	800 PSI (55.2 bar)

Product resources

CN Series (PDF)
