16U918

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 16U918

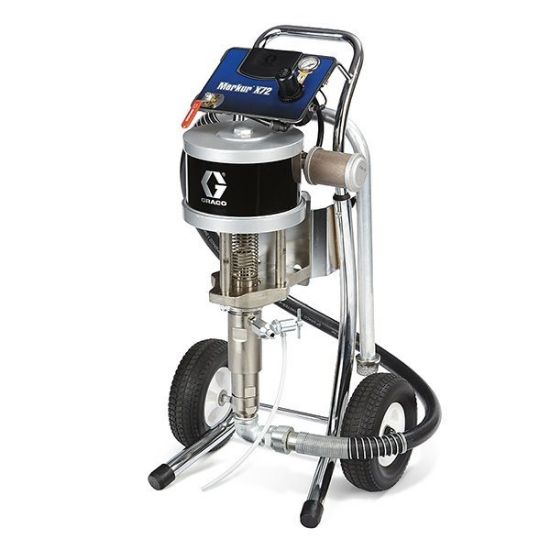

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

Products specifications

Attribute name	Attribute value
UOM	EA	Inlet Paint Strainer	8 Mesh;16 Mesh
Maximum Working Pressure	7250 psi	Series	X48/X72
Motor Type	Pneumatic	Fluid Outlet Thread Gender	Male
Pump Sleeve Material	Stainless Steel	Pump Rod Type	Carbon Steel
Mix Ratio	72:1	Maximum Tip Size	0.021 Inch
Maximum Operating Temperature	160 deg F	Maximum Sound Pressure Level	68.9 dB(A)
Power Source	Pneumatic	Fluid Inlet Size	1-1/4 Inch
Fluid Inlet Thread Type	NPT	Volume Per Cycle	50 Cubic cm
Lower Configuration	Carbon Steel;1-1/4 in. Inlet;Drain Valve	Maximum Fluid Working Pressure	7200 psi
Hose Inlet Diameter	3/8 Inch	Fluid Outlet Size	3/8 Inch
Model	Merkur	Pump Type	Displacement;Pneumatic Piston
Pump Pressure Ratio	72:1	Frame Configuration	Cart
Pressure Control Type	Air Regulator	Number of Guns	1
Maximum Air Consumption	70 SCFM	Mount Type	Cart
Maximum Air Inlet Pressure	100 psi	Fluid Outlet Thread Type	NPT
