17C752

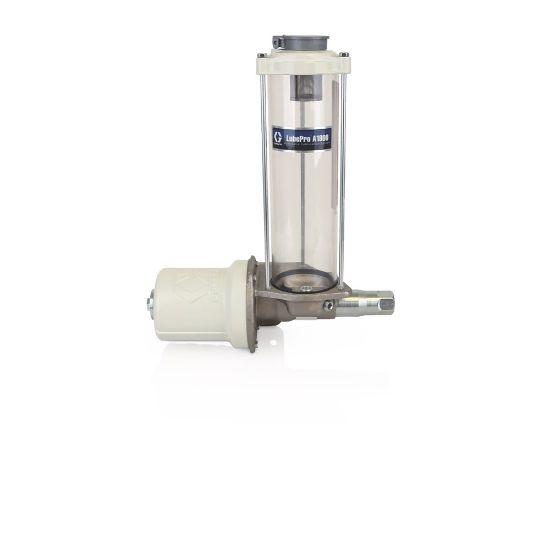

Graco 17C752 | Piston Pump | Pneumatic | A1900 Series | 3500 psi Maximum Working Pressure | LubePro Model | 1/4 Inch Air Inlet Size | NPT Air Inlet Thread
Availability:
Backordered
Estimated Lead Time: 10 days
Partner Available:Backordered
SKU 17C752
$1,995.00/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

Features

  • LubePro A1900 is compatible with GL-42 and GL-43 injectors
  • Pressure Ratio of 19:1
  • A1900 delivers a greater output than competitive models at 30 in³ (4916 cm³) per stroke
  • Pneumatic power makes it easy to install into existing air line
  • Optional Low Level Detection available, factory installed
  • Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
  • Built with high-quality seals tested to outperform the competition
  • High-strength, shatter resistant, 2 liter reservoir
  • Optimally lubricates while your machines are running
  • Provides accurate, reliable lubrication for every lube point
  • Provides higher lube output and faster lubrication cycle

Applications

  • In-Plant Machinery
Products specifications
Attribute nameAttribute value
UOMEASeriesA1900
Maximum Working Pressure3500 PSIWeight22 lb
Maximum Air Inlet Pressure185 psiFluid Outlet Size0.75 Inch
Overall Width15.5 InchModelLubePro
Overall Height18.62 InchMinimum cST Grade40 cST
Air Inlet Size1/4 InchReservoir Size4 lb
Air Inlet Thread TypeNPTFluid Outlet Thread TypeNPT
