*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

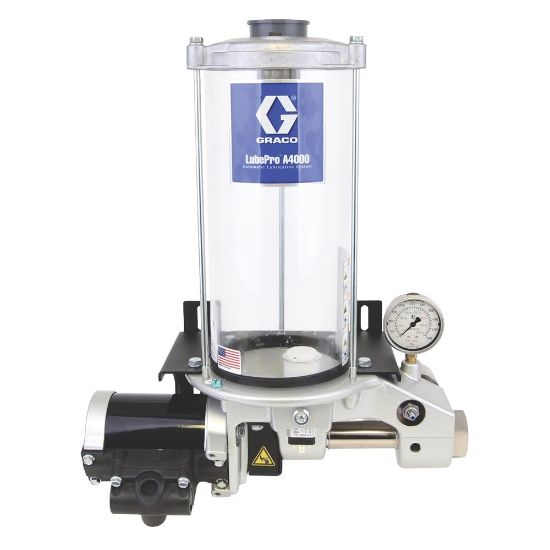

17P752

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 17P752

$3,353.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. Meet your LubePro. LubePro™ series pumps leverages the same proven quality and leading technology as Graco's Merkur Air Motor—the leader in durability and quality.

Features

LubePro A4000 is compatible with GL-1, GL-1 X, GL-1 XL, GL-32, GL-33, GL-42 and GL-43 injectors
Pressure Ratio of 40:1
A4000 delivers a greater output than competitive models at 50 in³ (819 cm³) per minute
Pneumatic power makes it easy to install into existing air line
Optional Low Level Detection available, factory installed
Integrated vent automatically and reliably relieves pressure
Built with high-quality seals tested to outperform the competition
High-strength, shatter resistant reservoir
Optimally lubricates while your machines are running
Provides accurate, reliable lubrication for every lube point
Provides higher lube output and faster lubrication cycle

Applications

In-Plant Machinery

Products specifications

Attribute name	Attribute value
UOM	EA	Series	A4000
Maximum Working Pressure	4000 PSI	Weight	45 lb
Overall Height	20 Inch	Fluid Outlet Size	0.25 Inch
Model	LubePro	Reservoir Size	1.45 gal
Fluid Outlet Thread Type	NPT	Maximum Air Inlet Pressure	100 psi
Minimum cST Grade	40 cST	Air Inlet Thread Type	NPT
Overall Width	15.8 Inch	Air Inlet Size	1/4 Inch
