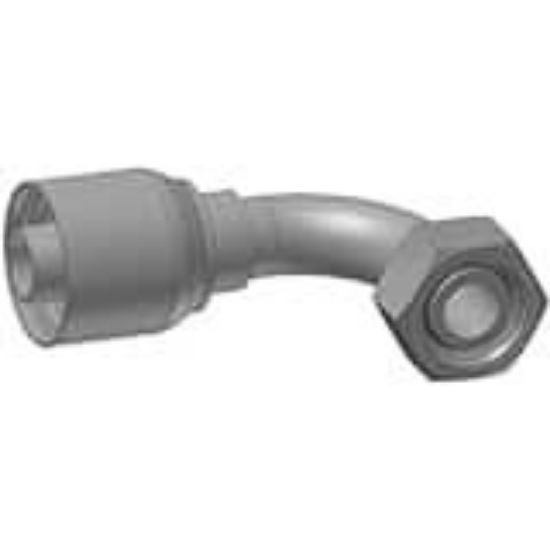

1CF43-6-4

The 43 Series of hydraulic hose fittings from Parker Hannifin is well known for its ease of assembly, wide selection of shape and end configurations, hose compatibility, and extensive use across markets. This fitting series of permanent crimp-style hydraulic fittings is designed for use with Parkrimp crimpers to deliver “bite-the-wire” sealing and holding power. When used with Parker’s No-Skive hoses, 43 Series fittings can be assembled without removing the outer hose cover, eliminating premature hose failure caused by skiving too long or too short.Available in sizes from -4 to -16 in a wide variety of end configurations and around the world. For highly corrosive applications, 43 Series fittings also are available in stainless steel.

Applications:

On Road Vehicles

Military - Land Based

Inplant Automotive

Construction

Agriculture

Forestry

Machine Tool

Oil & Gas

Material Handling

Marine

Water

Compatible Hoses:

304

421WC

426

722, 722TC, 722ST

787, 787TC (-4 and -6 only)

797, 797TC, 797ST ST (-4 and -6 only)

881

Markets:

Mobile | Industrial | Mining Features/Benefits: | Easy push on force | Stainless steel option available | Wide range of end configurations | One piece reduces complexity and leakage path | No-Skive technology offers easy, efficient, and safe production processes
