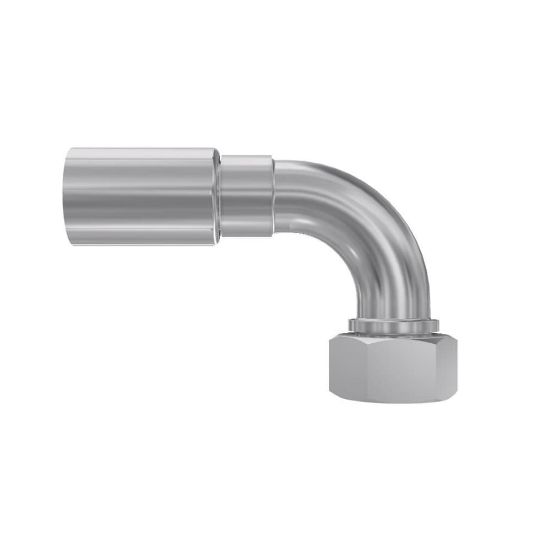

1CF56-10-4

Manufacturer: Parker

Availability:	Backordered
Partner Available:	31 in stock

SKU 1CF56-10-4

$85.17/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/4 inch Hose
Standard	ISO 12151-2-SWE-L	Fitting Length	55 mm
Connection Length	31 mm	Application	Machine Tools
Technology	Fluid & Gas Handling	Connection 2 Size	M16x1.5 mm Thread
Shape	Elbow 90°	Connection 1 Hose Inside Diameter	1/4 Inch
For Fluid Type	Water	Drop Length	29 mm
Coating	Chromium 6 Free-Plated	Body Material	Steel
Port Type	DKOL	Connection 1 Type	Hose
Product Type	Hose Fittings	Configuration	Hose to Port
Connection 2 Type	Swivel, Female Metric L - Swivel (24° Cone with O-Ring)	Hex Size	19 mm
