*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

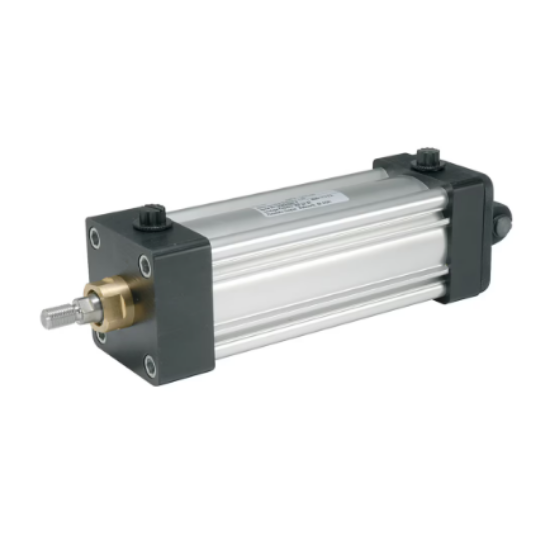

1P4MA0002308

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU 1P4MA0002308

$389.42/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

The 4MA series cylinder is a ruggedly constructed, highly configurable, all purpose design. The aluminum body and machined aluminum end caps make the 4MA a light weight solution. To minimize downtime when maintenance is required, the externally removeable bronze gland enables servicing of the cylinder without disassembly of the body. The 4MA series cylinder has a full range of features and options.

Features

Industry leading aluminum NFPA interchangeablecylinder with flexible construction
Removable bronze alloy gland/bearing for easymaintenance
Available in any practical stroke length
20 standard mounting styles available
Extruded-profile aluminum body with integratedswitch grooves
Single rod end or double rod ends
Cushions – standard and adjustable at bothends, optional non-cushioned
RoHS compliant

Products specifications

Attribute name	Attribute value
UOM	EA	Style	Tie Rod, NFPA
Series	4MA	Piston Material	Aluminum
Cylinder Material	Clear Anodized Aluminum Alloy	Lube Specification	Non Lube Design
Corrosion Resistant	Yes	Filtration Required	40 micron
Stroke Length	6 in	Mounting Style Description	Side Tap
Port Size	1/2	Bumpers	w/o Bumpers
End Type	Single Rod	Port Type	NPTF
Seal Type	Lipseal	Filter Media	Filtered Air
Rod Diameter	1 in	Rod Material	Case Hardened; Chrome-Plated Carbon Steel
Seal Material	Nitrile	Rod Thread Type	UNF
Maximum Pressure	250 psig	Maximum Temperature Range	165 °F
Minimum Temperature Range	-10 °F	Piston No.	1
Magnetic Ring	No	Cushions	Noncushioned
Mounting Style	MS4	Mounting Style Code	F
Rod End Style	Special - Specify	Bore Size	3 1/4 in

Customers who bought this item also bought

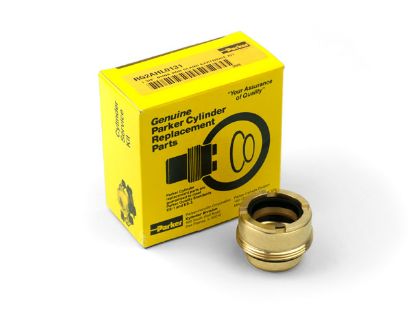

RGL6949MA1 - MA Series Rod Gland Kit
