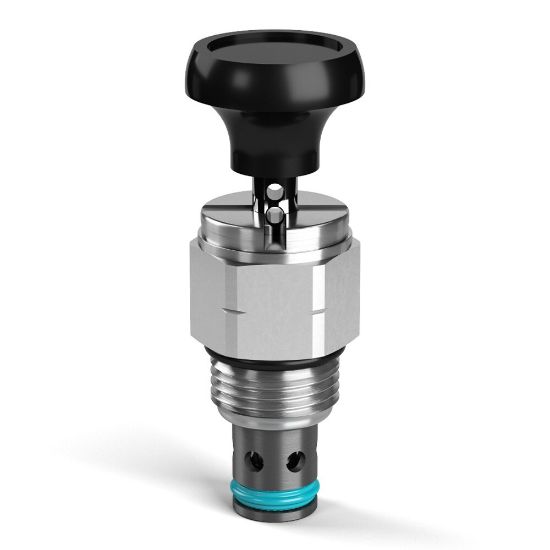

2 Position, 2 Way Normally Closed Poppet Type Manual Valve - DL081KV

Name: 2 Position, 2 Way Normally Closed Poppet Type Manual Valve - DL081KV
SKU: DL081KV

REGIONAL - Parker’s 2-position, 2-way normally-closed manual poppet valves are available with stem, knob, or lever actuators and are capable of flows up to 49 lpm (13 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU DL081KV

$80.91

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	8 GAL/MIN, 30 L/MIN
Seal Material	Fluorocarbon	Actuation Type	Knob
Configuration	Normally Closed	Connection Type	n/a
Maximum Operating Pressure	3000 psi	Weight	0.08 kg
Cavity Size	C08-2	Actuation Type	Knob
Seal Material	Fluorocarbon	Operating Temperature	-15 to +400 °F
Function	Poppet Type	Division	Hydraulic Systems Division
Flow Direction	Port 2 (side) inlet - Port 1 (nose) outlet	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Flow Rate	8 Gal/min	Maximum Operating Temperature	+400 °F
Valve Material	All parts steel. All operating parts hardened steel	Maximum Tank Pressure	5.5 bar
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Normally Closed
Maximum Flow Rate	30 L/min	Cracking Pressure	n/a
Operation Type	Manual	Body Material	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Connection Size	n/a
Mounting Type	Screw in cartridge valve	Minimum Operating Temperature	-26 °C
Maximum Inlet Pressure Rating	210 bar	Division	Hydraulic Cartridge Systems Division
Installation Torque	15 lb-ft	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
