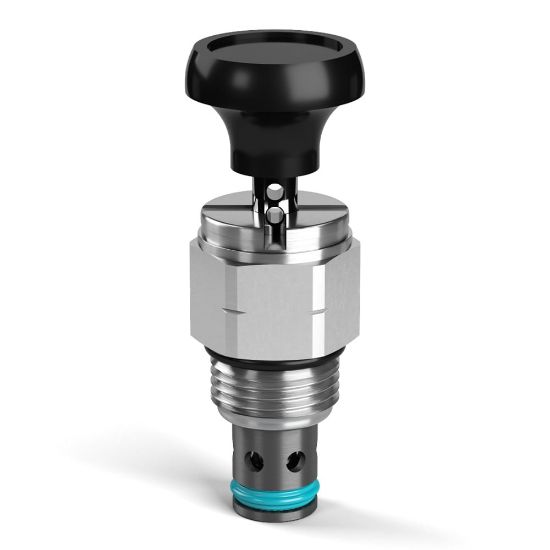

2 Position, 2 Way Normally Closed Poppet Type Manual Valve - DL081LV

Name: 2 Position, 2 Way Normally Closed Poppet Type Manual Valve - DL081LV
SKU: DL081LV

REGIONAL - Parker’s 2-position, 2-way normally-closed manual poppet valves are available with stem, knob, or lever actuators and are capable of flows up to 49 lpm (13 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU DL081LV

$87.00

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Actuation Type	Lever	Flow Rate	8 GAL/MIN, 30 L/MIN
Seal Material	Fluorocarbon	Seal Material	Fluorocarbon
Function	Poppet Type	Division	Hydraulic Cartridge Systems Division
Connection Type	n/a	Cavity Size	C08-2
Configuration	Normally Closed	Maximum Tank Pressure	5.5 bar
Maximum Flow Rate	30 L/min	Maximum Operating Pressure	3000 psi
Weight	0.08 kg	Operating Temperature	-15 to +400 °F
Mounting Type	Screw in cartridge valve	Connection Size	n/a
Minimum Operating Temperature	-15 °F	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Rate	8 Gal/min	Flow Direction	Port 2 (side) inlet - Port 1 (nose) outlet
Valve Material	All parts steel. All operating parts hardened steel	Body Material	n/a
Actuation Type	Lever	Maximum Operating Temperature	+204 °C
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Maximum Inlet Pressure Rating	3000 psi
Installation Torque	15 lb-ft	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Cracking Pressure	n/a	Operation Type	Manual
