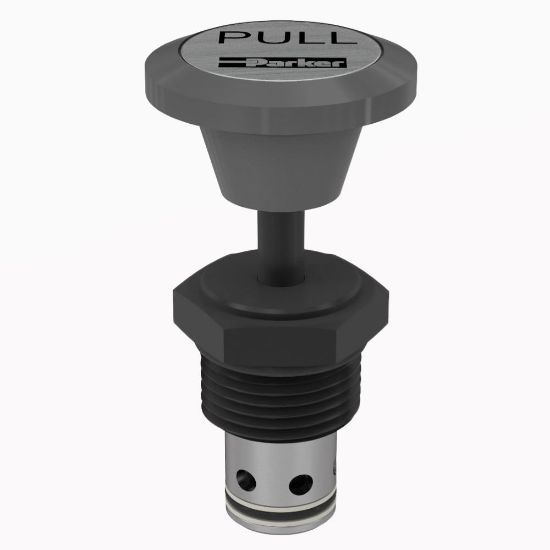

2 Position, 2 Way Normally Closed Poppet Type Manual Valve - DL101KV

Name: 2 Position, 2 Way Normally Closed Poppet Type Manual Valve - DL101KV
SKU: DL101KV

REGIONAL - Parker’s 2-position, 2-way normally-closed manual poppet valves are available with stem, knob, or lever actuators and are capable of flows up to 49 lpm (13 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU DL101KV

$99.62

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Actuation Type	Knob	Configuration	Normally Closed
Flow Rate	13 GAL/MIN, 48.8 L/MIN	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Operating Pressure	240 bar	Valve Material	All parts steel. All operating parts hardened steel
Flow Direction	Port 2 (side) inlet - Port 1 (nose) outlet	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Normally Closed	Installation Torque	22 Nm
Cavity Size	C10-2	Connection Type	n/a
Maximum Tank Pressure	250 psi	Operation Type	Manual
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Cracking Pressure	n/a
Division	Hydraulic Systems Division	Minimum Operating Temperature	-15 °F
Connection Size	n/a	Mounting Type	Screw in cartridge valve
Leak Rate	5 @ 3500 PSI (240 BAR) drops/min	Division	Hydraulic Cartridge Systems Division
Operating Temperature	-15 to +400 °C	Maximum Flow Rate	48.8 L/min
Body Material	n/a	Maximum Operating Temperature	+204 °C
Flow Rate	48.8 L/min	Maximum Inlet Pressure Rating	240 bar
Function	Poppet Type	Weight	0.09 kg
Actuation Type	Knob	Seal Material	Fluorocarbon
