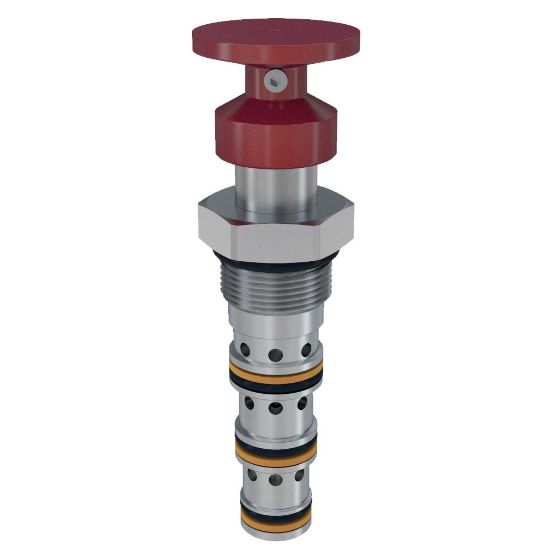

2 Position, 4 Way Push to Shift Manual Valve - GM0240CS1V

Name: 2 Position, 4 Way Push to Shift Manual Valve - GM0240CS1V
SKU: GM0240CS1V

Note: This product is no longer available - please contact us for further assistance.

Availability:

Backordered

SKU GM0240CS1V

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Configuration	Normally Closed	Actuation Type	Knob
Flow Rate	4 GAL/MIN, 15 L/MIN	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-26 °C	Operation Type	Manual
Maximum Operating Pressure	350 bar	Maximum Inlet Pressure Rating	5000 psi
Flow Rate	4 Gal/min	Installation Torque	30 Nm
Weight	0.25 lb	Cavity Size	C10-4
Configuration	Normally Closed	Maximum Operating Temperature	+204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Function	Spool Type	Actuation Type	Knob
Detents	Yes	Maximum Tank Pressure	35 bar
Force	11 lbf	Maximum Flow Rate	15 L/min
Leak Rate	200 @ 5000 PSI (350 BAR) cm3/min
