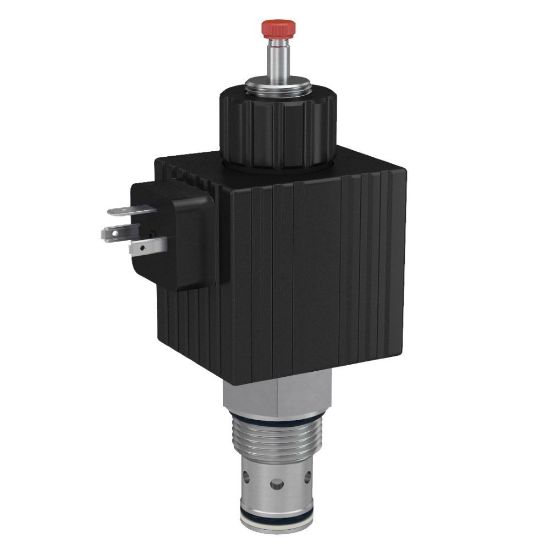

DF122C14V - 2 Way Flow Control Proportional Valves

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU DF122C14V

$291.02/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Actuation Type	Electrical, Manual	Flow Rate	14 GAL/MIN, 53 L/MIN
Seal Material	Fluorocarbon	Hysteresis	4%
Frequency	100-400 Hz	Connection Size	n/a
Wire Mesh Screen Included	No	Cavity Size	C12-2
Minimum Operating Temperature	-15 °F	Variation of Closing Point	N/A
Current	Max: 3.53 @ 12 VDC, 1.79 @ 24 VDC A	Body Material	n/a
Flow Rate Accuracy	N/A	Maximum Inlet Pressure Rating	3000 psi
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+204 °C
Installation Torque	21 lb-ft	Seal Material	Fluorocarbon
Maximum Operating Pressure	210 bar	Coil Nut Tightening Torque	Finger Tight
Weight	0.32 kg	Leak Rate	250 @ 3000 PSI (210 BAR) cm3/min
Operation Type	Solenoid operated, Manually operated	Actuation Type	Electrical, Manual
Maximum Flow Rate	53.0 L/min	Valve Material	All parts steel. All operating parts hardened steel
Flow Direction	Side to Nose (2 - 1)	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Power Consumption	42 W
Minimum Pressure Differential	N/A psi	Override Functionality	Push Type w/Extended Rod
Function	Proportional Flow Control/Regulator	Connection Type	n/a
Coil Type	1" DS Coil High Watt	Variation of Opening Point	20%-30% of Input Signal
Configuration	Normally Closed	Flow Rate	14 Gal/min
