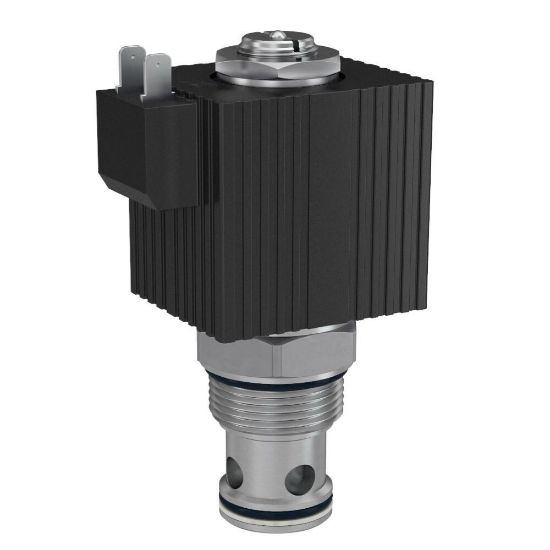

2 Way Flow Control Proportional Valves - DF161C40

Name: 2 Way Flow Control Proportional Valves - DF161C40
SKU: DF161C40

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU DF161C40

$566.59

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Seal Material	Nitrile	Actuation Type	Electrical
Flow Rate	40 GAL/MIN, 150 L/MIN	Variation of Closing Point	N/A
Current	Max: 3.53 @ 12 VDC, 1.79 @ 24 VDC A	Maximum Inlet Pressure Rating	210 bar
Division	Hydraulic Cartridge Systems Division	Operating Temperature	-30 to +250 °F
Body Material	n/a	Flow Rate Accuracy	N/A
Weight	0.75 lb	Coil Nut Tightening Torque	4.1 Nm
Flow Rate	40 Gal/min	Maximum Operating Temperature	+121 °C
Minimum Operating Temperature	-30 °F	Cavity Size	C16-2
Seal Material	Nitrile	Flow Direction	Side to Nose (2 - 1)
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	40.0 Gal/min
Actuation Type	Electrical	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Power Consumption	42 W
Maximum Operating Pressure	3000 psi	Minimum Pressure Differential	N/A psi
Function	Proportional Flow Control/Regulator	Coil Type	1" DS Coil High Watt
Connection Type	n/a	Override Functionality	n/a
Variation of Opening Point	20%-30% of Input Signal	Configuration	Normally Closed
Leak Rate	125 @ 3000 PSI (210 BAR) cm3/min	Hysteresis	4%
Installation Torque	54 Nm	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Frequency	100-400 Hz	Division	Hydraulic Systems Division
Operation Type	Solenoid Operated	Wire Mesh Screen Included	No
Connection Size	n/a
