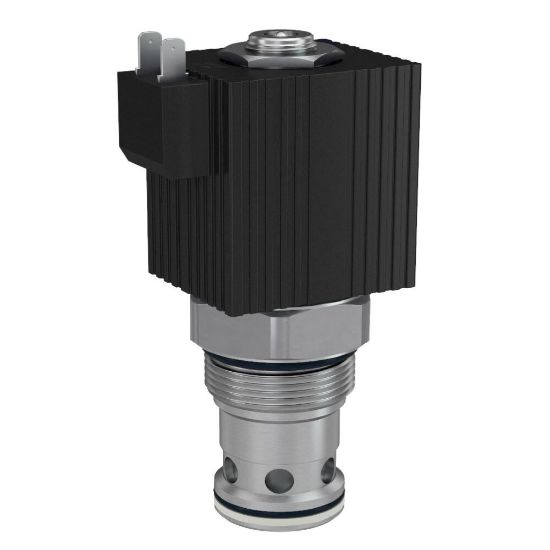

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

DF201C60 - 2 Way Flow Control Proportional Valves

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU DF201C60

$647.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Flow Rate	60 GAL/MIN, 227 L/MIN	Seal Material	Nitrile
Actuation Type	Electrical	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Flow Rate	60.0 Gal/min	Flow Rate Accuracy	N/A
Installation Torque	83 lb-ft	Body Material	n/a
Maximum Inlet Pressure Rating	3000 psi	Frequency	100-400 Hz
Cavity Size	C20-2	Hysteresis	4%
Seal Material	Nitrile	Flow Rate	60 Gal/min
Current	Max: 3.53 @ 12 VDC, 1.79 @ 24 VDC A	Variation of Closing Point	N/A
Function	Proportional Flow Control/Regulator	Connection Type	n/a
Override Functionality	n/a	Variation of Opening Point	20%-30% of Input Signal
Coil Type	1" DS Coil High Watt	Maximum Operating Pressure	3000 psi
Weight	0.75 lb	Minimum Pressure Differential	N/A psi
Maximum Operating Temperature	+121 °C	Minimum Operating Temperature	-34 °C
Connection Size	n/a	Wire Mesh Screen Included	No
Coil Nut Tightening Torque	3 lb-ft	Operation Type	Solenoid Operated
Leak Rate	125 @ 3000 PSI (210 BAR) cm3/min	Power Consumption	42 W
Actuation Type	Electrical	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Normally Closed	Valve Material	All parts steel. All operating parts hardened steel
Flow Direction	Side to Nose (2 - 1)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
