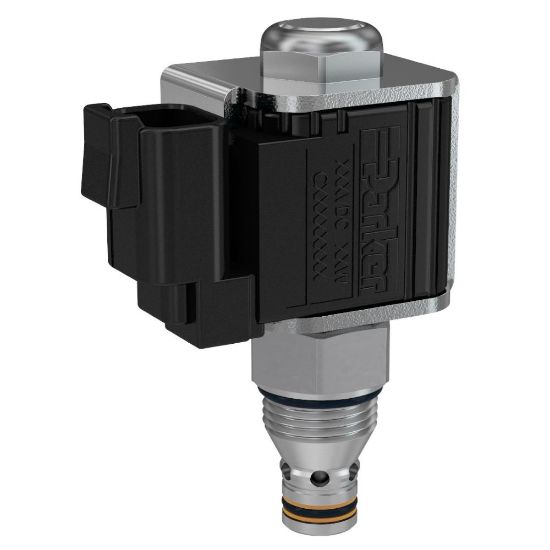

Picture of 2 Way Poppet Type Bi-Directional Solenoid Valve - GS028510N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2 Way Poppet Type Bi-Directional Solenoid Valve - GS028510N

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).
Availability:
Backordered
SKU GS028510N
$221.14
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
ConfigurationNormally OpenFlow Rate9 GAL/MIN, 34 L/MIN
Maximum Inlet Pressure Rating3000 PSI, 210 BARActuation TypeElectrical, Manual
Wire Mesh Screen IncludedNoSeal MaterialNitrile
Connection Sizen/aSpecifications MetN/A
Body Materialn/aDivisionHydraulic Systems Division
Flow DirectionBi-directionalMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Function2-WayMaximum Operating Pressure210 bar
Minimum Operating Temperature-34 °CCavity SizeC08-2
Maximum Inlet Pressure Rating3000 psiInstallation Torque22 lb-ft
Coil Nut Tightening Torque4.1 NmFlow Rate34 L/min
Maximum Flow Rate34 L/minConfigurationNormally Open
Actuation TypeElectrical, ManualMaximum Operating Temperature+121 °C
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4For Fluid TypeMineral-based or synthetic hydraulic fluids
Operation TypeSolenoid operated, Manually operatedValve MaterialAll parts steel. All operating parts hardened steel
Operating Temperature-34 to +121 °CWire Mesh Screen IncludedNo
Mounting TypeScrew in cartridge valveLeak Rate5 drops/min
Input Voltage85% of rated voltage at 72°F (20°C) minResponse Time40 ms
Coil Type1/2" Super Coil Low Watt (CCS)ApplicationMobile Hydraulics, Industrial Hydraulics
Bore DiameterN/ASeat MaterialSteel
Flange Face TypeN/AANSI Flange ClassN/A
Override FunctionalityNon-DetentedWeight0.31 lb
