2 Way Poppet Type Bi-Directional Solenoid Valve - GS048120N

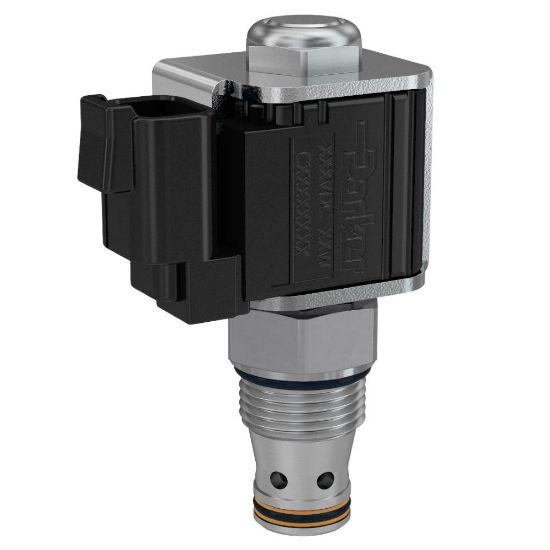

Name: 2 Way Poppet Type Bi-Directional Solenoid Valve - GS048120N
SKU: GS048120N

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Availability:

Backordered

SKU GS048120N

$256.62

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Closed	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	No
Flow Rate	18 GAL/MIN, 68 L/MIN	Seal Material	Nitrile
Connection Size	n/a	Specifications Met	N/A
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Systems Division	Flow Direction	Bi-directional
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Function	2-Way	Weight	0.17 kg
Maximum Inlet Pressure Rating	350 bar	Coil Type	1/2" Super Coil High Watt (CCP)
Installation Torque	25 lb-ft	Coil Nut Tightening Torque	4.1 Nm
Configuration	Normally Closed	Actuation Type	Electrical, Manual
Maximum Operating Temperature	+121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Leak Rate	5 drops/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Application	Mobile Hydraulics, Industrial Hydraulics
Bore Diameter	N/A	Seat Material	Steel
Flange Face Type	N/A	ANSI Flange Class	N/A
Override Functionality	Non-Detented	Flow Rate	18 Gal/min
Cavity Size	2R	Maximum Flow Rate	18 Gal/min
