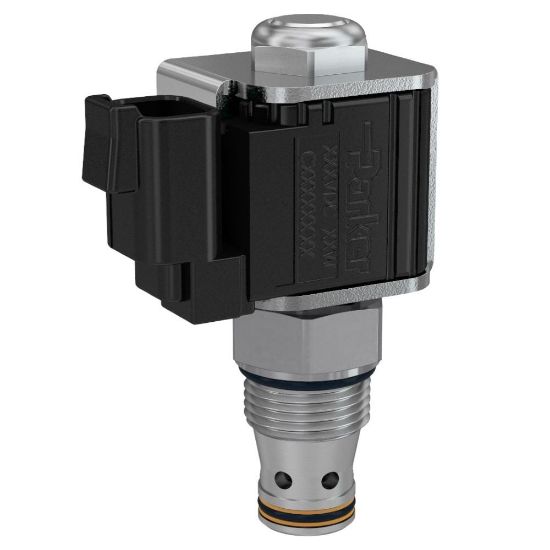

GS048610N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU GS048610N

$239.23/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	No
Flow Rate	18 GAL/MIN, 68 L/MIN	Seal Material	Nitrile
Connection Size	n/a	Specifications Met	N/A
Body Material	n/a	Flow Direction	Bi-directional
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Function	2-Way
Minimum Operating Temperature	-34 °C	Weight	0.37 lb
Maximum Operating Pressure	350 bar	Maximum Inlet Pressure Rating	5000 psi
Coil Type	1/2" Super Coil High Watt (CCP)	Installation Torque	25 lb-ft
Coil Nut Tightening Torque	3 lb-ft	Configuration	Normally Open
Actuation Type	Electrical, Manual	Maximum Operating Temperature	+250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Leak Rate	5 drops/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Bore Diameter	N/A
Seat Material	Steel	Flange Face Type	N/A
ANSI Flange Class	N/A	Override Functionality	Non-Detented
Flow Rate	68 L/min	Cavity Size	2R
Maximum Flow Rate	18 Gal/min
