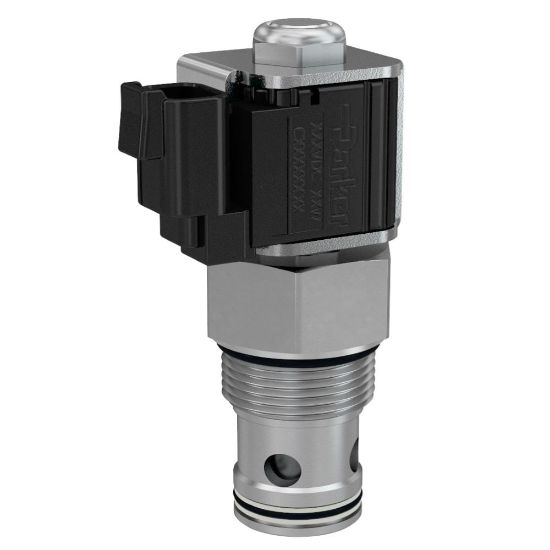

GS068000N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS068000N

$235.24/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Closed	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Actuation Type	Electrical	Wire Mesh Screen Included	No
Flow Rate	75 GAL/MIN, 285 L/MIN	Actuation Type	Electrical
Maximum Operating Pressure	3000 psi	Seal Material	Nitrile
Connection Size	n/a	Specifications Met	N/A
Body Material	n/a	Flow Direction	Bi-directional
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Function	2-Way	Override Functionality	n/a
Cavity Size	C16-2	Operation Type	Solenoid Operated
Coil Nut Tightening Torque	4.1 Nm	Configuration	Normally Closed
Maximum Operating Temperature	+121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Wire Mesh Screen Included	No	Maximum Inlet Pressure Rating	210 bar
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Coil Type	1/2" Super Coil Low Watt (CCS)
Bore Diameter	N/A	Seat Material	Steel
Flange Face Type	N/A	ANSI Flange Class	N/A
Weight	0.4 kg	Flow Rate	75 Gal/min
Leak Rate	9 drops/min	Maximum Flow Rate	75 Gal/min
Installation Torque	108 Nm
