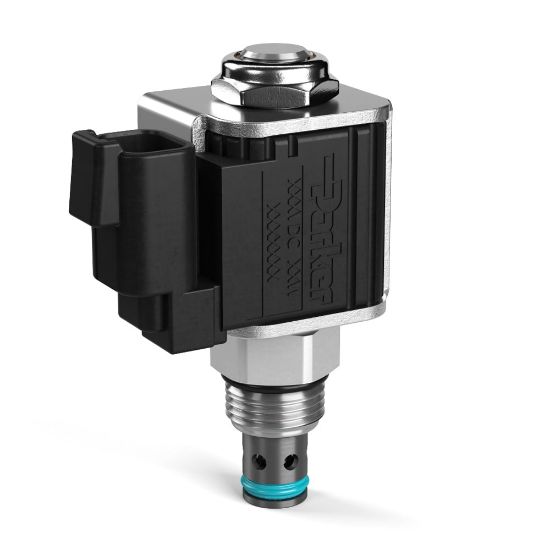

DSH081CHRT - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSH081CHRT

$122.02/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	8 GAL/MIN, 30 L/MIN
Seal Material	D-Ring (Standard)	Wire Mesh Screen Included	No
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Actuation Type	Electrical, Manual
Configuration	Normally Closed	Configuration	Normally Closed
Cavity Size	C08-2	Seal Material	D-Ring (Standard)
Response Time	30 ms	Maximum Flow Rate	8 Gal/min
Weight	0.11 kg	Override Functionality	Push and Twist
Coil Type	1/2" Super Coil	Wire Mesh Screen Included	No
Maximum Inlet Pressure Rating	350 bar	Minimum Operating Temperature	-35.0 °F
Flow Rate	8 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	+93 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Valve Material	All parts steel. All operating parts hardened steel	Adjustment Mechanism	N/A
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Flow Direction	Side to Nose (2-1)
Installation Torque	43-49 Nm	Body Material	n/a
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C) min
Free Reverse Flow	Yes	Actuation Type	Electrical, Manual
Operation Type	Solenoid operated, Manually operated	Leak Rate	5 drops/min
Coil Nut Tightening Torque	7-10 Nm	Function	2-Way
Maximum Operating Pressure	350 bar
