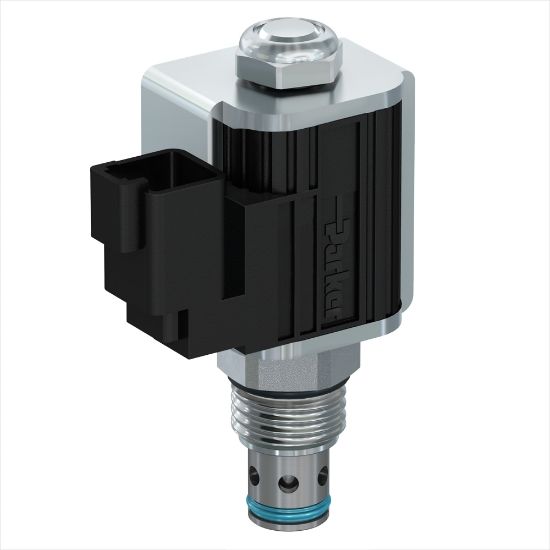

DSH101C - 2 Way Poppet Type Solenoid Valve

Name: DSH101C - 2 Way Poppet Type Solenoid Valve
SKU: DSH101C
Price: 63.08 USD
Availability: InStock

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:

3 in stock

Olivette, MO

Partner Available:

7 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU DSH101C

$63.08/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Wire Mesh Screen Included	No
Flow Rate	15 GAL/MIN, 60 L/MIN	Actuation Type	Electrical
Body Material	n/a	Flow Direction	Side to Nose (2-1)
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-37 °C
Function	2-Way	Maximum Operating Temperature	+200 °F
Override Functionality	n/a	Maximum Operating Pressure	350 bar
Cavity Size	C10-2	Maximum Inlet Pressure Rating	5000 psi
Seal Material	D-Ring (Standard)	Operation Type	Solenoid Operated
Flow Rate	60 L/min	Maximum Flow Rate	60 L/min
Configuration	Normally Closed	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Leak Rate	5 drops/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Nut Tightening Torque	7-10 Nm	Free Reverse Flow	No
Adjustment Mechanism	N/A	Weight	0.41 lb
Coil Type	5/8" Super Coil	Response Time	80 ms
Installation Torque	51-55 lb-ft
