Picture of DSH101NR - 2 Way Poppet Type Solenoid Valve

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

DSH101NR - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).
Availability:
17 in stock
Olivette, MO13
Wichita, KS4
Partner Available:19 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU DSH101NR
$97.01/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConfigurationNormally Open
Maximum Inlet Pressure Rating5000 PSI, 350 BARSeal MaterialD-Ring (Standard)
Actuation TypeElectricalWire Mesh Screen IncludedNo
Flow Rate15 GAL/MIN, 60 L/MINActuation TypeElectrical
Body Materialn/aMaximum Operating Pressure5000 psi
Flow DirectionSide to Nose (2-1)Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature-37 °CFunction2-Way
Maximum Operating Temperature+200 °FOverride Functionalityn/a
Cavity SizeC10-2Maximum Inlet Pressure Rating350 bar
Seal MaterialD-Ring (Standard)Operation TypeSolenoid Operated
Flow Rate60 L/minMaximum Flow Rate60 L/min
ConfigurationNormally OpenFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
For Fluid TypeMineral-based or synthetic hydraulic fluidsValve MaterialAll parts steel. All operating parts hardened steel
Wire Mesh Screen IncludedNoMounting TypeScrew in cartridge valve
Leak Rate5 drops/minInput Voltage85% of rated voltage at 72°F (20°C) min
Coil Nut Tightening Torque5-7 lb-ftFree Reverse FlowYes
Adjustment MechanismN/AWeight0.41 lb
Coil Type5/8" Super CoilInstallation Torque69-75 Nm
Response Time70 ms
Customers who bought this item also bought

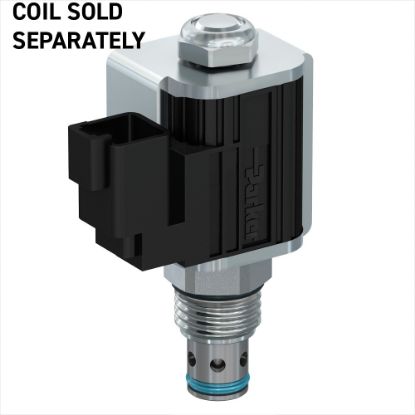

Picture of DSH101CR - 2 Way Poppet Type Solenoid Valve
