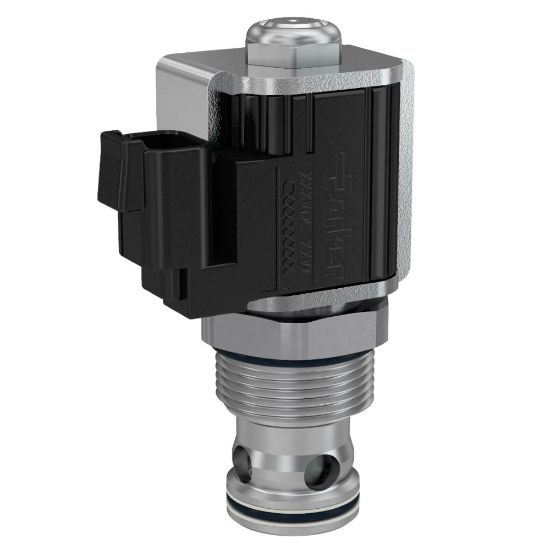

DSH161C - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU DSH161C

$159.58/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Closed	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	40 GAL/MIN, 150 L/MIN	Actuation Type	Electrical
Wire Mesh Screen Included	No	Actuation Type	Electrical
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	5000 psi	Flow Direction	Side to Nose (2-1)
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Weight	0.34 kg	Function	2-Way
Override Functionality	n/a	Maximum Flow Rate	40 Gal/min
Maximum Inlet Pressure Rating	5000 psi	Cavity Size	C16-2
Operation Type	Solenoid Operated	Configuration	Normally Closed
Maximum Operating Temperature	+250 °F	Flow Rate	150 L/min
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Coil Nut Tightening Torque	5-7 lb-ft	Free Reverse Flow	No
Adjustment Mechanism	N/A	Coil Type	5/8" Super Coil
Installation Torque	169-173 lb-ft
