Picture of DSL081NEV - 2 Way Poppet Type Solenoid Valve

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

DSL081NEV - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).
Availability:
Backordered
Estimated Lead Time: 71 days
Partner Available:Backordered
SKU DSL081NEV
$75.04/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialFluorocarbon
ConfigurationNormally OpenFlow Rate8 GAL/MIN, 30 L/MIN
Actuation TypeElectrical, ManualWire Mesh Screen IncludedNo
Maximum Inlet Pressure Rating3600 PSI, 250 BARSeal MaterialFluorocarbon
Body Materialn/aFlow DirectionSide to Nose (2-1)
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Minimum Operating Temperature-15 °F
Function2-WayMaximum Operating Pressure3600 psi
Maximum Flow Rate8 Gal/minWeight0.11 kg
Cavity SizeC08-2Flow Rate8 Gal/min
ConfigurationNormally OpenActuation TypeElectrical, Manual
Maximum Operating Temperature+204 °CFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
For Fluid TypeMineral-based or synthetic hydraulic fluidsOperation TypeSolenoid operated, Manually operated
Valve MaterialAll parts steel. All operating parts hardened steelOverride FunctionalityPush Type w/Extended Rod
Wire Mesh Screen IncludedNoMounting TypeScrew in cartridge valve
Coil Type1/2" Super CoilLeak Rate5 drops/min
Input Voltage85% of rated voltage at 72°F (20°C) minResponse Time50 ms
Coil Nut Tightening Torque5-7 lb-ftFree Reverse FlowNo
Adjustment MechanismN/AInstallation Torque23-27 lb-ft
Maximum Inlet Pressure Rating250 bar
Customers who bought this item also bought
Picture of 8-3/8 F5OF-S - Pipe Fittings and Port Adapters

8-3/8 F5OF-S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.
$7.96/each
Picture of B08-2-6T - Standard Bodies

B08-2-6T - Standard Bodies

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.
$62.86/each

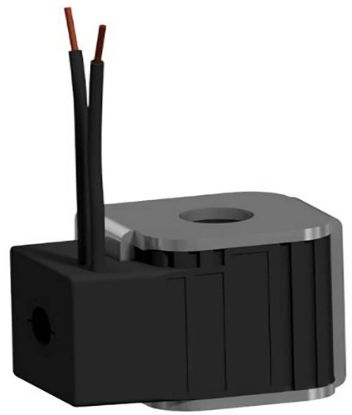

Picture of CCS012L - 1/2" Super Coil
