DSL101NR - 2 Way Poppet Type Solenoid Valve

Name: DSL101NR - 2 Way Poppet Type Solenoid Valve
SKU: DSL101NR
Price: 77.21 USD
Availability: InStock

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:

4 in stock

Olivette, MO

Partner Available:

44 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU DSL101NR

$77.21/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Open
Seal Material	D-Ring (Standard)	Actuation Type	Electrical
Wire Mesh Screen Included	No	Flow Rate	15 GAL/MIN, 60 L/MIN
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Actuation Type	Electrical
Body Material	n/a	Flow Direction	Side to Nose (2-1)
Maximum Flow Rate	15 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Function	2-Way
Maximum Operating Temperature	+200 °F	Override Functionality	n/a
Cavity Size	C10-2	Maximum Operating Pressure	250 bar
Seal Material	D-Ring (Standard)	Operation Type	Solenoid Operated
Flow Rate	60 L/min	Configuration	Normally Open
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Nut Tightening Torque	7-10 Nm
Free Reverse Flow	Yes	Adjustment Mechanism	N/A
Weight	0.41 lb	Coil Type	5/8" Super Coil
Maximum Inlet Pressure Rating	250 bar	Installation Torque	37-41 lb-ft
Response Time	35 ms

Customers who bought this item also bought

RDH103S10 - Direct Acting Differential Area Relief Valves

Parker’s direct acting differential area relief valves are for fast response intermittent applications and work up to 380 bar (5500 psi) and 151 lpm (40 gpm). These valves have lower leakage rates and pressure rise than standard direct acting reliefs.

$46.76/each

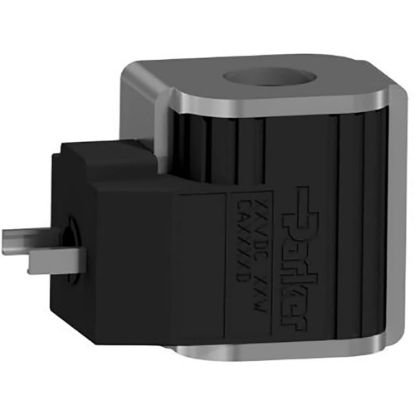

CAS115D - 5/8" Super Coil
