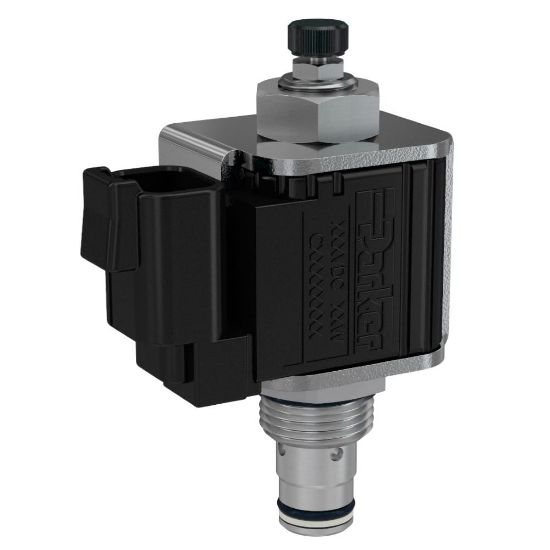

2 Way Poppet Type Solenoid Valve - GH02011N

Name: 2 Way Poppet Type Solenoid Valve - GH02011N
SKU: GH02011N

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:

Backordered

SKU GH02011N

$1,377.80

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	3 GAL/MIN, 11 L/MIN	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	Yes	Configuration	Normally Closed w/Flow Control Adjustment
Maximum Inlet Pressure Rating	4000 PSI, 285 BAR	Seal Material	Nitrile
Body Material	n/a	Division	Hydraulic Systems Division
Flow Direction	Side to Nose (2-1)	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Flow Rate	3 Gal/min	Minimum Operating Temperature	-30 °F
Function	2-Way	Flow Rate	3 Gal/min
Maximum Operating Pressure	4000 psi	Weight	0.09 kg
Override Functionality	n/a	Cavity Size	C08-2
Wire Mesh Screen Included	Yes	Coil Nut Tightening Torque	4.1 Nm
Adjustment Mechanism	Knob Adjustment	Actuation Type	Electrical, Manual
Maximum Operating Temperature	+250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Mounting Type	Screw in cartridge valve	Coil Type	1/2" Super Coil
Leak Rate	5 drops/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Free Reverse Flow	No	Configuration	Normally Closed w/Flow Control Adjustment
Response Time	20 ms	Installation Torque	27 Nm
Maximum Inlet Pressure Rating	285 bar
