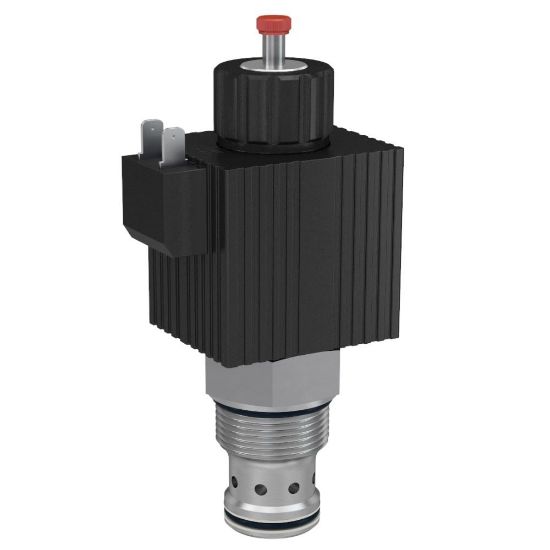

DS162C - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DS162C

$223.37/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Wire Mesh Screen Included	No
Flow Rate	20 GAL/MIN, 75 L/MIN	Seal Material	Nitrile
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR	Actuation Type	Electrical, Manual
Configuration	Normally Closed	Wire Mesh Screen Included	No
Flow Rate	75 L/min	Override Functionality	Push
Valve Material	All parts steel. All operating parts hardened steel	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	+250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Body Material	n/a	Coil Type	1" DS Coil
Response Time	90 ms	Mounting Type	Screw in cartridge valve
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Installation Torque	54 Nm
Weight	1.3 lb	Operation Type	Solenoid operated, Manually operated
Cavity Size	C16-2	Seal Material	Nitrile
Actuation Type	Electrical, Manual	Input Voltage	85% of rated voltage at 72°F (20°C) min
Function	2-Way	Maximum Inlet Pressure Rating	210 bar
Maximum Flow Rate	75 L/min	Maximum Operating Pressure	3000 psi
Leak Rate	240 CC/min @ 3000 PSI (210 BAR) cm3/min	Configuration	Normally Closed
Minimum Operating Temperature	-34 °C	Coil Nut Tightening Torque	4.1 Nm
