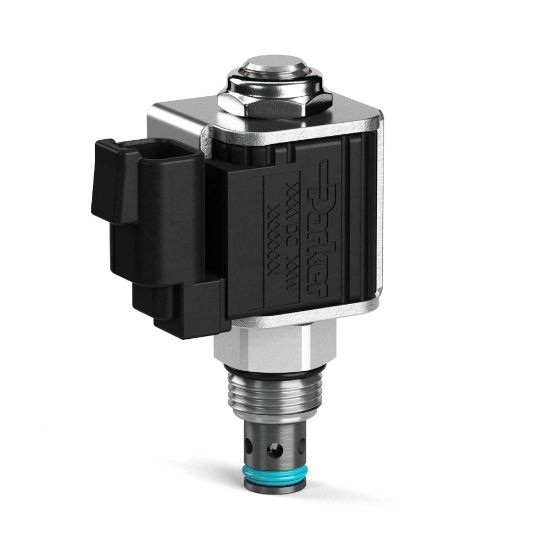

DSH082C - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU DSH082C

$73.95/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring
Actuation Type	Electrical	Flow Rate	4 GAL/MIN, 15 L/MIN
Wire Mesh Screen Included	No	Actuation Type	Electrical
Body Material	n/a	Maximum Operating Pressure	5000 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-35 °F
Function	2-Way	Maximum Operating Temperature	+200 °F
Override Functionality	n/a	Cavity Size	C08-2
Maximum Inlet Pressure Rating	350 bar	Flow Rate	4 Gal/min
Operation Type	Solenoid Operated	Weight	0.25 lb
Configuration	Normally Closed	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Installation Torque	32-36 lb-ft	Coil Nut Tightening Torque	7-10 Nm
Leak Rate	160 CC/min @ 5000 PSI (350 BAR) cm3/min	Response Time	40 ms
Seal Material	D-Ring	Maximum Flow Rate	4 Gal/min
