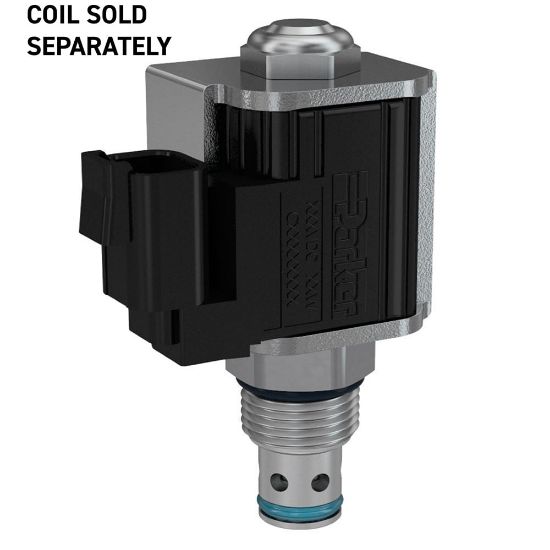

DSH102C - 2 Way Spool Type Solenoid Valve

Name: DSH102C - 2 Way Spool Type Solenoid Valve
SKU: DSH102C
Price: 67.43 USD
Availability: LimitedAvailability

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:

1 Limited Stock

Wichita, KS

Partner Available:

26 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU DSH102C

$67.43/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Flow Rate	8 GAL/MIN, 30 L/MIN	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Seal Material	D-Ring	Actuation Type	Electrical
Wire Mesh Screen Included	No	Actuation Type	Electrical
Body Material	n/a	Maximum Operating Pressure	5000 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-35 °F
Function	2-Way	Maximum Operating Temperature	+200 °F
Weight	0.18 kg	Override Functionality	n/a
Maximum Flow Rate	8 Gal/min	Flow Rate	8 Gal/min
Cavity Size	C10-2	Maximum Inlet Pressure Rating	5000 psi
Operation Type	Solenoid Operated	Configuration	Normally Closed
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	30 ms	Coil Nut Tightening Torque	5-7 lb-ft
Leak Rate	160 CC/min @ 5000 PSI (350 BAR) cm3/min	Seal Material	D-Ring
Coil Type	5/8" Super Coil	Installation Torque	51-55 lb-ft
