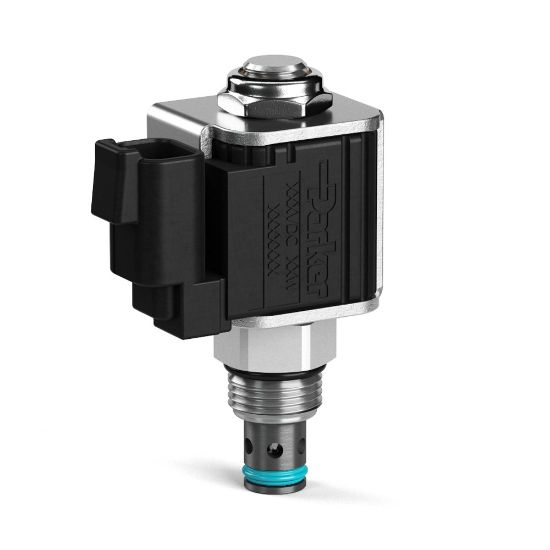

2 Way Spool Type Solenoid Valve - DSL082C

Name: 2 Way Spool Type Solenoid Valve - DSL082C
SKU: DSL082C

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:

Backordered

SKU DSL082C

$59.81

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Seal Material	D-Ring	Actuation Type	Electrical
Flow Rate	4 GAL/MIN, 15 L/MIN	Wire Mesh Screen Included	No
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Actuation Type	Electrical
Body Material	n/a	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-35 °F
Function	2-Way	Maximum Operating Temperature	+200 °F
Override Functionality	n/a	Cavity Size	C08-2
Maximum Operating Pressure	250 bar	Operation Type	Solenoid Operated
Weight	0.25 lb	Configuration	Normally Closed
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Operating Temperature	-37 to +93 °C
Flow Rate	15 L/min	Coil Type	1/2" Super Coil
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Nut Tightening Torque	5-7 lb-ft
Response Time	40 ms	Seal Material	D-Ring
Maximum Flow Rate	4 Gal/min	Installation Torque	23-27 lb-ft
Maximum Inlet Pressure Rating	3600 psi	Leak Rate	120 CC/min @ 3600 PSI (250 BAR) cm3/min
