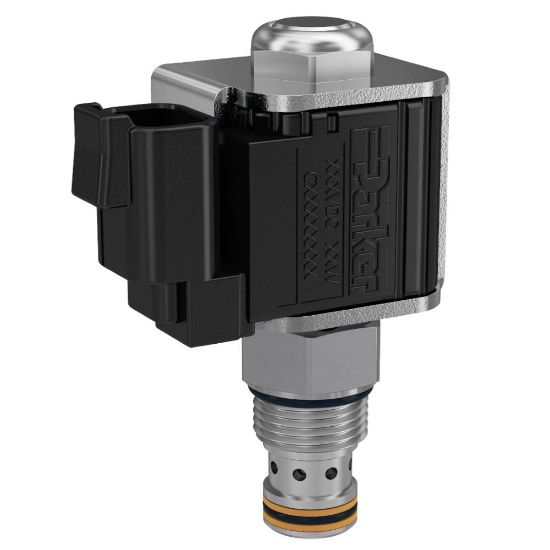

GS022200V - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS022200V

$129.02/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Configuration	Normally Closed	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	5 GAL/MIN, 19 L/MIN	Actuation Type	Electrical
Wire Mesh Screen Included	No	Actuation Type	Electrical
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-26 °C
Function	2-Way	Override Functionality	n/a
Maximum Operating Pressure	350 bar	Maximum Flow Rate	5 Gal/min
Flow Rate	19 L/min	Maximum Inlet Pressure Rating	350 bar
Weight	0.14 lb	Operation Type	Solenoid Operated
Installation Torque	30 Nm	Coil Nut Tightening Torque	4.1 Nm
Cavity Size	C09-2	Configuration	Normally Closed
Maximum Operating Temperature	+204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Leak Rate	82 CC/min @ 3000 PSI (210 BAR) cm3/min
